XAM5718ABCXE
ObsoleteTexas Instruments

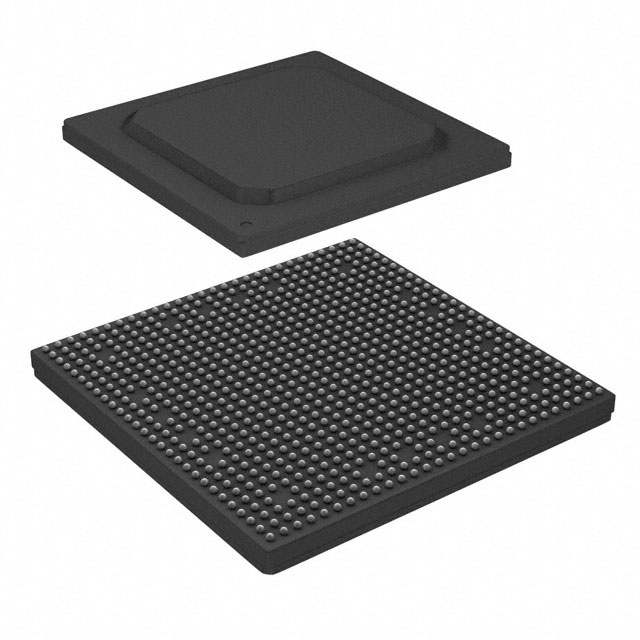

IC MPU SITARA 1.5GHZ 760FCBGA
Deep-Dive with AI
Search across all available documentation for this part.
XAM5718ABCXE
ObsoleteTexas Instruments
IC MPU SITARA 1.5GHZ 760FCBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XAM5718ABCXE |
|---|---|
| Additional Interfaces | CAN, McASP, PCIe, QSPI, I2C, UART, MMC/SD/SDIO, HDQ/1-Wire\, EBI/EMI, McSPI |
| Co-Processors/DSP | VFP, IPU, Multimedia, GPU |
| Core Processor | ARM® Cortex®-A15 |
| Display & Interface Controllers | HDMI |
| Ethernet | 10 Mbps, 100 Mbps, 1000 Mbps |
| Graphics Acceleration | True |
| Mounting Type | Surface Mount |
| Number of Cores/Bus Width | 32 Bit, 1 Core |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | FCBGA, 760-BFBGA |
| RAM Controllers | DDR3, SRAM |
| SATA | 3 Gbps |
| Speed | 1.5 GHz |
| Supplier Device Package | 760-FCBGA (23x23) |
| USB [custom] | USB 2.0 (1), USB 3.0 (1) |
| Voltage - I/O | 3.3 V, 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XAM57 Series
ARM® Cortex®-A15 Microprocessor IC Sitara™ 1 Core, 32-Bit 1.5GHz 760-FCBGA (23x23)
Documents
Technical documentation and resources
