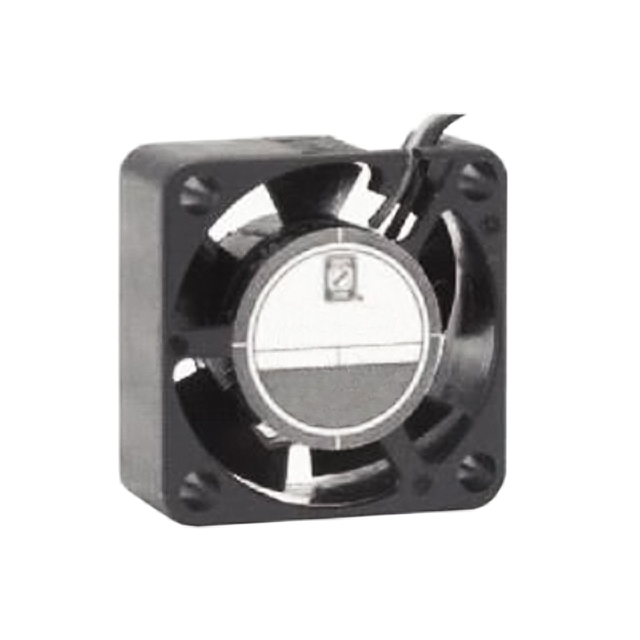

OD2510-12MB

Active

Orion Fans

FAN AXIAL 25X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD2510-12MB

Active

Orion Fans

FAN AXIAL 25X10MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD2510-12MB

Air Flow	2.2 CFM
Air Flow	0.061 m³/min
Approval Agency	cURus, TUV
Bearing Type	Sealed Sleeve
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	24 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	10000 RPM
Size / Dimension [x]	25 mm
Size / Dimension [z]	25 mm
Static Pressure	42.3 Pa
Static Pressure	0.17 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	16 V
Voltage Range [Min]	6 VDC
Weight	0.022 lb
Weight	9.98 g
Width [y]	10 mm

OD2510 Series

Part	Bearing Type	RPM	Fan Type	Width [y]	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Current Rating (Amps)	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Approval Agency	Static Pressure	Static Pressure	Lifetime @ Temp.	Termination	Size / Dimension [x]	Size / Dimension [z]	Noise
Orion Fans OD2510-05LB01A	Ball	8000 RPM	Tubeaxial	10 mm	Auto Restart Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	4 VDC	5.5 V	5 V	100 mA	0.022 lb	9.98 g	1.8 CFM	0.05 mł/min	0.5 W	cURus TUV	29.9 Pa	0.12 in H2O	60000 Hrs	3 Wire Leads	25 mm	25 mm
Orion Fans OD2510-05LB	Ball	8000 RPM	Tubeaxial	10 mm	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	4 VDC	5.5 V	5 V	100 mA	0.022 lb	9.98 g	1.8 CFM	0.05 mł/min	0.5 W	cURus TUV	29.9 Pa	0.12 in H2O	60000 Hrs	2 Wire Leads	25 mm	25 mm
Orion Fans OD2510-05MB	Ball	10000 RPM	Tubeaxial	10 mm	Auto Restart	50 °C	50 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	4 VDC	5.5 V	5 V	100 mA	0.022 lb	9.98 g	2.2 CFM	0.061 m³/min	600 mW	cURus TUV	42.3 Pa	0.17 in H2O	60000 Hrs	2 Wire Leads	25 mm	25 mm	24 dB
Orion Fans OD2510-12MB	Sealed Sleeve	10000 RPM	Tubeaxial	10 mm	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	6 VDC	16 V	12 VDC		0.022 lb	9.98 g	2.2 CFM	0.061 m³/min		cURus TUV	42.3 Pa	0.17 in H2O	60000 Hrs	2 Wire Leads	25 mm	25 mm	24 dB
Orion Fans OD2510-12LLB	Ball	7000 RPM	Tubeaxial	10 mm	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	9 V	13.2 VDC	12 VDC	70 mA	0.022 lb	9.98 g	1.5 CFM	0.042 m³/min	840 mW	cURus TUV	17.4 Pa	0.07 in H2O	60000 Hrs	2 Wire Leads	25 mm	25 mm
Orion Fans OD2510-12HB	Ball	12000 RPM	Tubeaxial	10 mm	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	6 VDC	16 V	12 VDC	0.09 A	0.022 lb	9.98 g	2.7 CFM	0.076 m³/min	1.08 W	cURus TUV	57.3 Pa	0.23 in H2O	60000 Hrs	2 Wire Leads	25 mm	25 mm	31 dB(A)
Orion Fans OD2510-05LLB	Ball		Tubeaxial	10 mm	Auto Restart	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)			5 V		0.022 lb	9.98 g				cURus TUV			60000 Hrs	2 Wire Leads	25 mm	25 mm
Orion Fans OD2510-05MSS01A	Sealed Sleeve		Tubeaxial	10 mm	Auto Restart Speed Sensor (Tach)					Polybutylene Terephthalate (PBT)			5 V		0.022 lb	9.98 g								3 Wire Leads	25 mm	25 mm	24 dB
Orion Fans OD2510-05HSS	Sealed Sleeve		Tubeaxial	10 mm	Auto Restart					Polybutylene Terephthalate (PBT)			5 V		0.022 lb	9.98 g								2 Wire Leads	25 mm	25 mm	31 dB(A)
Orion Fans OD2510-05MB01A	Ball	10000 RPM	Tubeaxial	10 mm	Auto Restart Speed Sensor (Tach)	50 °C	50 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)	4 VDC	5.5 V	5 V	100 mA	0.022 lb	9.98 g	2.2 CFM	0.061 m³/min	600 mW	cURus TUV	42.3 Pa	0.17 in H2O	60000 Hrs	3 Wire Leads	25 mm	25 mm	24 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.25
		10	$ 16.47
		25	$ 15.49
		80	$ 14.90
		160	$ 13.72
		320	$ 12.84
		560	$ 12.65

Description

General part information

OD2510 Series

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Sealed Sleeve 2.2 CFM (0.061m³/min) 2 Wire Leads
