19200100251
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, SINGLE SIDE ENTRY M25, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10A
Deep-Dive with AI
Search across all available documentation for this part.
19200100251
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, SINGLE SIDE ENTRY M25, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19200100251 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10 A |
| Size / Dimension [x] | 74.4 mm, 2.929 in |
| Size / Dimension [y] | 50 mm, 1.969 in |
| Size / Dimension [z] | 52 mm, 2.047 in |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19200100 Series

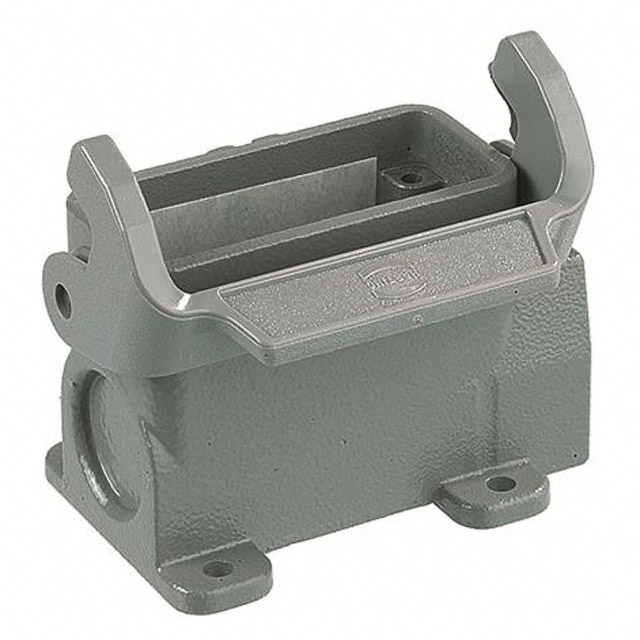

The 19200100251 is a Heavy Duty Connector Base made of gray RAL 7037 aluminum die-cast. It comes with a gray RAL 7037 polycarbonate/stainless steel single locking lever and NBR seal. The low construction surface mount base is suitable for use with the Han® A series.
