NC4D-JP-DC48V

Active

Panasonic Electric Works

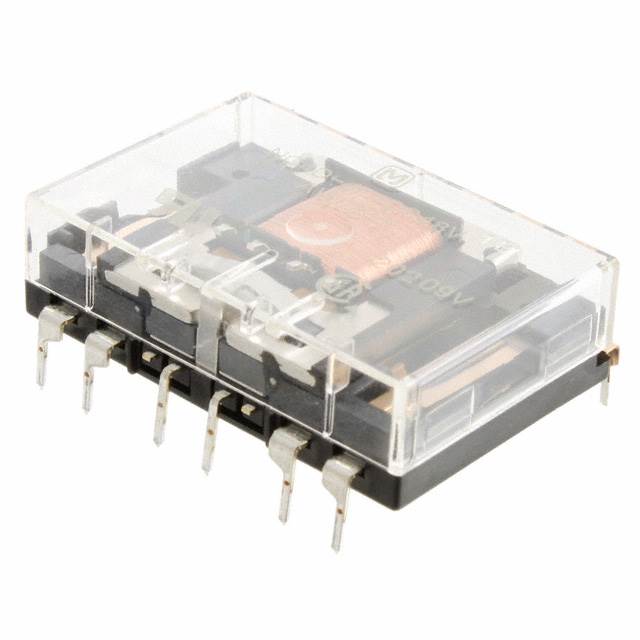

RELAY GEN PURPOSE 4PDT 5A 48V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 5A 48V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Coil Voltage	Termination Style	Release Time	Contact Rating (Current)	Contact Form	Operate Time	Coil Resistance	Mounting Type	Load - Max Switching [Max]	Switching Voltage	Approval Agency	Contact Material	Coil Current	Must Operate Voltage	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type
Panasonic Electric Works NC4D-JP-DC48V	General Purpose	48 VDC	PC Pin	10 ms	5 A	4PDT (4 Form C)	20 ms	3.2 kOhms	Through Hole	1250 VA	250 VAC	CSA UR	Gold (Au) Silver Nickel (AgNi)	15 mA	38.4 VDC	4.8 VDC	-40 °C	55 °C	Non Latching
Panasonic Electric Works NC4D-JP-DC24V	General Purpose	24 VDC	PC Pin	10 ms	5 A	4PDT (4 Form C)	20 ms	800 Ohms	Through Hole	1250 VA	250 VAC	CSA UR	Gold (Au) Silver Nickel (AgNi)	30 mA	19.2 VDC	2.4 VDC	-40 °C	55 °C	Non Latching
Panasonic Electric Works NC4D-JP-DC6V	General Purpose		PC Pin	10 ms	5 A	4PDT (4 Form C)	20 ms	50 Ohms	Through Hole	1250 VA	250 VAC	CSA UR	Gold (Au) Silver Nickel (AgNi)	120 mA	4.8 VDC	0.6 VDC	-40 °C	55 °C	Non Latching
Panasonic Electric Works NC4D-JP-DC3V	General Purpose		PC Pin	10 ms	5 A	4PDT (4 Form C)	20 ms	12.5 Ohms	Through Hole	1250 VA	250 VAC	CSA UR	Gold (Au) Silver Nickel (AgNi)	240 mA	2.4 VDC	0.3 VDC	-40 °C	55 °C	Non Latching
Panasonic Electric Works NC4D-JP-AC100V	General Purpose	100 VAC	PC Pin		5 A	4PDT (4 Form C)	30 ms	7.692 kOhms	Through Hole	1250 VA	250 VAC	CSA UR	Gold (Au) Silver Nickel (AgNi)	13 mA	80 VAC	10 VAC	-40 °C	60 °C	Non Latching
