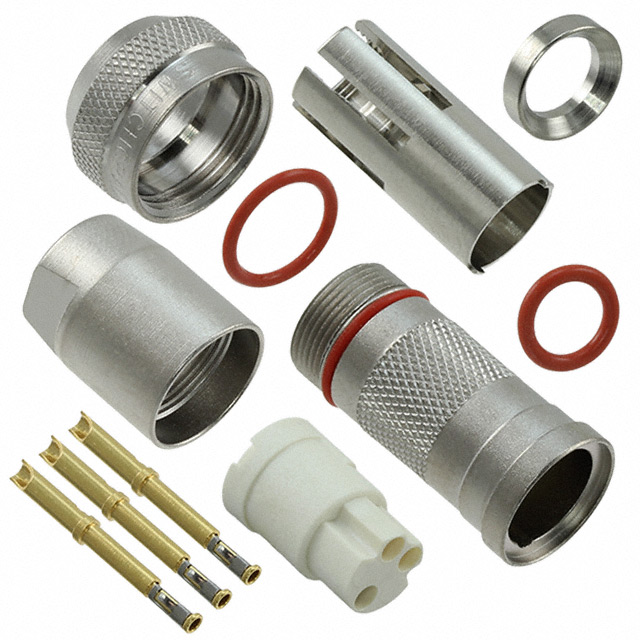

TS2C3F20C

Active

Switchcraft Inc.

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2C3F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

Part	Primary Material	Shell Finish	Shielding	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Insert Material	Backshell Material, Plating	Termination	Mounting Type	Orientation	Features	Applications	Ingress Protection	Voltage Rating	Shell Material	Color
Switchcraft Inc. TS2C3F20C	Metal	Electroless Nickel	Shielded	Gold	5.49 mm	4.57 mm	0.18 in	0.216 in	135 °C	-40 °C	Female Sockets Plug	Copper Alloy	Liquid Crystal Polymer (LCP)	Copper Alloy Nickel	Crimp Solder Cup	Free Hanging (In-Line)	Keyed	Backshell Coupling Nut	Agriculture Audio General Medical Testing Equipment & Measurement	IP66 IP67 IP68	125 VAC	Copper Alloy	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.09

General part information

3 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
