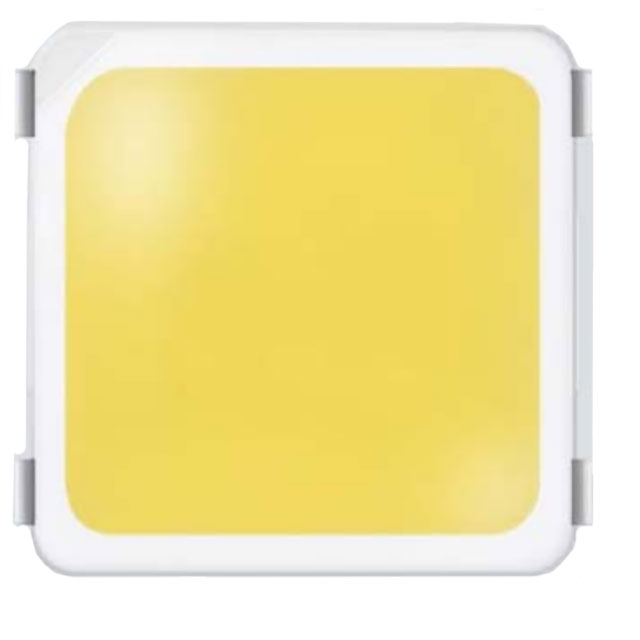

SPMWHT32BMD5YBU3S0

Samsung Semiconductor, Inc.

LED LM302C WARM WHT 3500K 3030

Deep-Dive with AI

Search across all available documentation for this part.

SPMWHT32BMD5YBU3S0

Samsung Semiconductor, Inc.

LED LM302C WARM WHT 3500K 3030

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPMWHT32BMD5YBU3S0

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	150 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	64 lm
Flux @ 25°C, Current - Test [Max]	70 lm
Flux @ 25°C, Current - Test [Min]	58 lm
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	5.9 V

SPMWHT32 Series

Part	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Color	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [custom]	CCT (K)	CRI (Color Rendering Index)	Current - Test	Mounting Type	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWHT32BMD5YBRKS0	1212	3030 Metric	177 lm/W	Cool White	115 °	0.85 mm	0.033 "	150 mA	74 lm	62 lm	68 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	5000 K	80	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD5YBQKS0	1212	3030 Metric		Cool White	115 °	0.85 mm	0.033 "	150 mA	70 lm	58 lm	64 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	5700 K	80	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD3YBVSS0	1212	3030 Metric	177 lm/W	Warm White	115 °	0.85 mm	0.033 "	150 mA	74 lm	62 lm	68 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W		70	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD5YBRSS0	1212	3030 Metric	177 lm/W	Cool White	115 °	0.85 mm	0.033 "	150 mA	74 lm	62 lm	68 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	5000 K	80	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD7YBV0S0	1212	3030 Metric	136 lm/W	Warm White	115 °	0.85 mm	0.033 "	150 mA			52 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W		90	65 mA	Surface Mount	58 lm	46 lm
Samsung Semiconductor, Inc. SPMWHT32BMD5YBWKS0	1212	3030 Metric	156 lm/W	Warm White	115 °	0.85 mm	0.033 "	150 mA			60 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	2700 K	80	65 mA	Surface Mount	66 lm	54 lm
Samsung Semiconductor, Inc. SPMWHT32BMD5YBT3S0	1212	3030 Metric		Neutral White	115 °	0.85 mm	0.033 "	150 mA	70 lm	58 lm	64 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	4000 K	80	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD5YBU3S0	1212	3030 Metric		Warm White	115 °	0.85 mm	0.033 "	150 mA	70 lm	58 lm	64 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	3500 K	80	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD3YBV0S0	1212	3030 Metric	177 lm/W	Warm White	115 °	0.85 mm	0.033 "	150 mA	74 lm	62 lm	68 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W		70	65 mA	Surface Mount
Samsung Semiconductor, Inc. SPMWHT32BMD3YBUKS0	1212	3030 Metric	177 lm/W	Warm White	115 °	0.85 mm	0.033 "	150 mA	74 lm	62 lm	68 lm	3030	0.118 in	3 mm	3 mm	0.118 in	5.9 V	8 °C/W	3500 K	70	65 mA	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
	Digi-Reel®	1	$ 0.60
	Tape & Reel (TR)	4000	$ 0.10
		8000	$ 0.10
		12000	$ 0.09
		28000	$ 0.08
		100000	$ 0.07

Description

General part information

SPMWHT32 Series

LED Lighting LM302C White, Warm 3500K 3-Step MacAdam Ellipse 5.9V 65mA 115° 1212 (3030 Metric)
