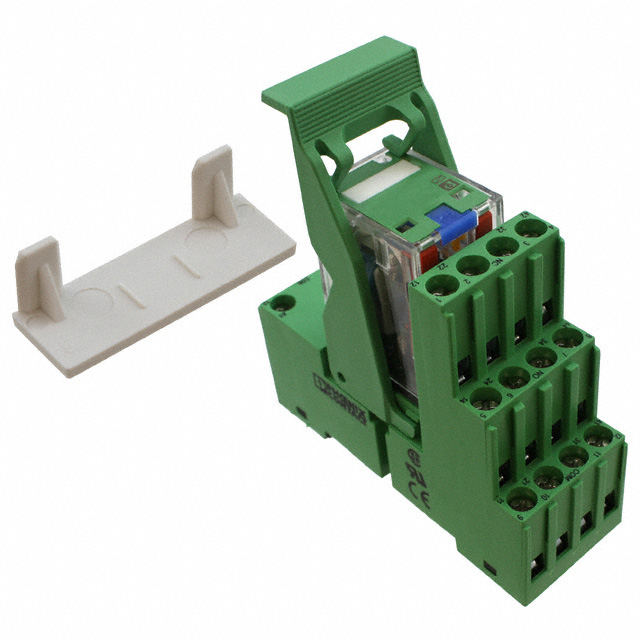

RELAY GEN PURPOSE DPDT 10A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2834643

Coil Current	38 mA
Coil Resistance	632 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Features	Socket Included, Diode, Lighted Indicator
Load - Max Switching	2500 VA, 1250 W
Mounting Type	DIN Rail
Operate Time	13 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Screw Terminal

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Release Time	Features	Load - Max Switching	Coil Type	Relay Type	Contact Rating (Current)	Coil Resistance	Termination Style	Coil Voltage	Switching Voltage	Operate Time	Mounting Type	Contact Material	Coil Current	Load - Max Switching [Max]
Phoenix Contact 2834643	-25 °C	60 °C	DPDT (2 Form C)	5 ms	Diode Lighted Indicator Socket Included	1250 W 2500 VA	Non Latching	General Purpose	10 A	632 Ohms	Screw Terminal	24 VDC	125 VDC 250 VAC	13 ms	DIN Rail	Silver (Ag)	38 mA
Phoenix Contact 2834601	-25 °C	60 °C	DPDT (2 Form C)	10 ms	Diode Lighted Indicator Socket Included		Non Latching	General Purpose	8 A	1263 Ohms	Spring Terminal	24 VDC	250 VAC 250 VDC	8 ms	DIN Rail	Gold (Au) Silver Nickel (AgNi)	19 mA
Phoenix Contact 2834685	-25 °C	60 °C	DPDT (2 Form C)	5 ms	Diode Lighted Indicator Socket Included		Non Latching	General Purpose	10 A	632 Ohms	Spring Terminal	24 VDC	250 VAC	13 ms	DIN Rail	Silver (Ag)	38 mA	2500 VA
Phoenix Contact 2834669	-25 °C	60 °C	DPDT (2 Form C)	12 ms	Lighted Indicator Socket Included Varistor	1250 W 2500 VA	Non Latching	General Purpose	10 A	13.33 kOhms	Screw Terminal	120 VAC	125 VDC 250 VAC	10 ms	DIN Rail	Silver (Ag)	9 mA
Phoenix Contact 2834627	-25 °C	60 °C	DPDT (2 Form C)	16 ms	Lighted Indicator Socket Included Varistor		Non Latching	General Purpose	8 A	17.1 kOhms	Spring Terminal	120 VAC	250 VAC 250 VDC	12 ms	DIN Rail	Gold (Au) Silver Nickel (AgNi)	7 mA
