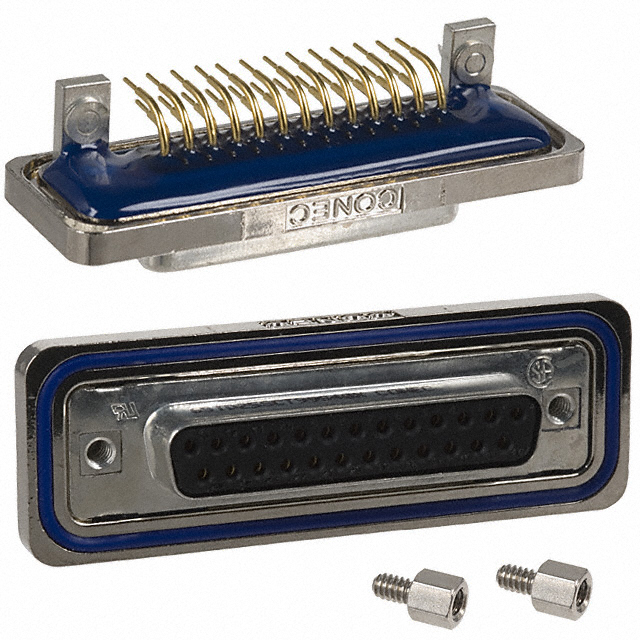

6STD25SCT99S40X

Active

Amphenol CONEC

CONN D-SUB RCPT 25POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	6STD25SCT99S40X

Backset Spacing	4.8 mm
Backset Spacing	0.189 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Tin Plated, Copper Alloy
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Dielectric Material	Number of Rows	Contact Material	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Material Flammability Rating	Contact Finish	Color	Backset Spacing	Backset Spacing	Connector Style	Shell Material, Finish	Connector Type	Ingress Protection	Current Rating (Amps)	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage Rating	Contact Finish Thickness
Amphenol CONEC 6STD25SCT99S40X	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Female Screwlock (4-40) Mating Side	B DB	3	Solder	UL94 V-0	Gold	Black	4.8 mm	0.189 in	D-Sub	Copper Alloy Tin Plated	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	5 A	Panel Mount Right Angle Through Hole	0.76 Ám	30 Áin	Signal	Board Lock Mounting Brackets	-25 °C	105 ░C
Amphenol CONEC 6STD25SAM99B70X	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	4-40	B DB	3		UL94 V-0	Gold	Black			D-Sub	Copper Alloy Tin Plated	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	7.5 A				Signal	Mounting Hardware	-25 °C	105 ░C	20 AWG	125 VDC	Flash
Amphenol CONEC 6STD25SAT99S40X	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Female Screwlock (4-40) Mating Side	B DB	3	Solder	UL94 V-0	Gold	Black	4.8 mm	0.189 in	D-Sub	Copper Alloy Tin Plated	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	7.5 A	Board Edge Right Angle Through Hole			Signal	Board Lock Mounting Brackets	-25 °C	105 ░C		125 VDC	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
