245046030600868+

Active

Kyocera AVX

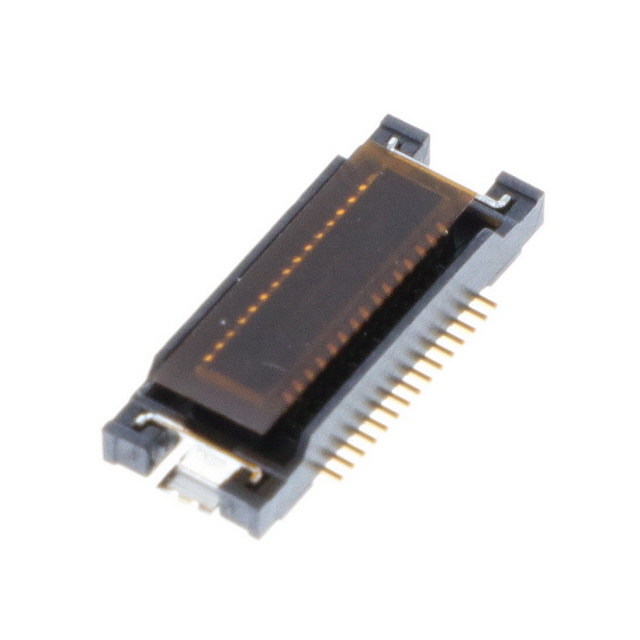

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

245046030600868+

Active

Kyocera AVX

CONN RCPT 30POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245046030600868+

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Pick and Place, Solder Retention
Height Above Board	0.098 in
Height Above Board	2.5 mm
Mated Stacking Heights	3 mm, 3.5 mm, 4.5 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

245046 Series

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Mated Stacking Heights	Features	Number of Positions	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Kyocera AVX 245046120600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	120	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046120600829+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	120	Center Strip Contacts Receptacle	Surface Mount	4 Áin	0.1 Ám
Kyocera AVX 245046030600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	30	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046070600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	70	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046100600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	100	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046060600829+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	60	Center Strip Contacts Receptacle	Surface Mount	4 Áin	0.1 Ám
Kyocera AVX 245046040000868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm		40	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046080600868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Pick and Place Solder Retention	80	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046020100868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	20	Center Strip Contacts Receptacle	Surface Mount
Kyocera AVX 245046080100868+	Gold	0.5 mm	0.02 in	2	0.098 in	2.5 mm	3 mm 3.5 mm 4 mm 4.5 mm	Solder Retention	80	Center Strip Contacts Receptacle	Surface Mount
