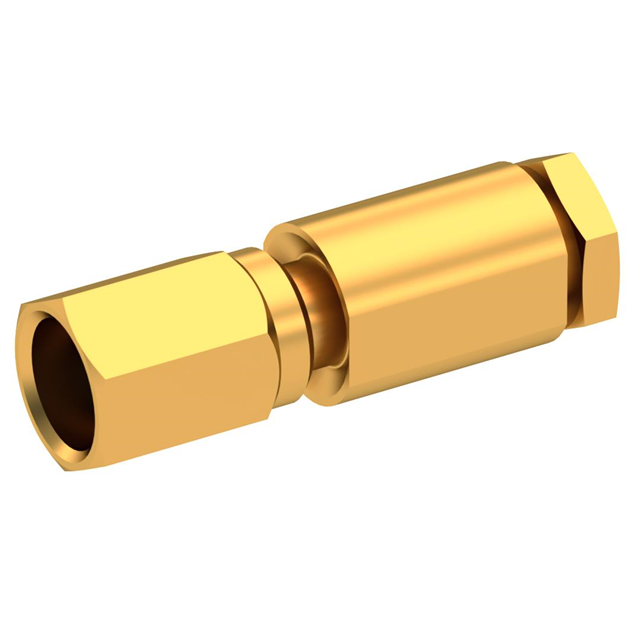

7002-1542-010

Active

Radiall USA, Inc.

SSMC / STRAIGHT PLUG FEMALE SOLD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC / STRAIGHT PLUG FEMALE SOLD

Technical Specifications

Parameters and characteristics for this part

Specification	7002-1542-010

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Dielectric Material	Center Contact Material	Number of Ports	Center Contact Plating	Housing Color	Mating Cycles	Contact Termination	Mounting Type	Impedance	Shield Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Cable Group	Cable Group	Body Finish	Frequency - Max [Max]	Body Material
Radiall USA, Inc. 7002-1542-011	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	Gold	Gold	500	Solder	Free Hanging (In-Line)	50 Ohms	Clamp	SSMC	-65 ░C	165 °C	250 VDC	Female Socket Plug	Semi Rigid	0.047 in	Gold	12.4 GHz	Beryllium Copper
Radiall USA, Inc. 7002-1542-010	Polytetrafluoroethylene (PTFE)	Beryllium Copper	1	Gold	Gold	500	Solder	Free Hanging (In-Line)	50 Ohms	Clamp	SSMC	-65 ░C	165 °C	250 VDC	Female Socket Plug	RG-405 (.085" Semi Rigid)		Gold	12.4 GHz	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
