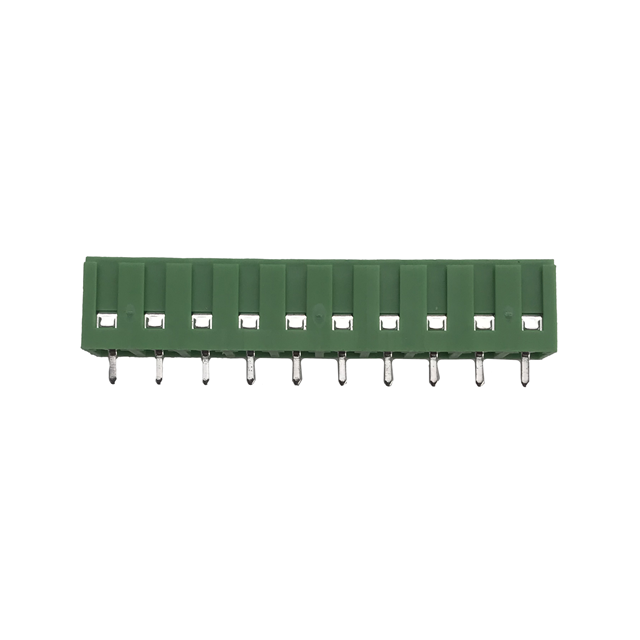

MB612-50010

Active

Deca

PCB TERMINAL BLOCK, 5.00MM, 10 P

Search across all available documentation for this part.

Active

Deca

PCB TERMINAL BLOCK, 5.00MM, 10 P

Technical Specifications

Parameters and characteristics for this part

Specification	MB612-50010

Clamp Material - Plating	Brass - Nickel Plated
Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	16 A
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	10
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.6
Torque - Screw	0.51 Nm
Torque - Screw	4.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Current	Contact Material - Plating [custom]	Wire Gauge [Max]	Wire Gauge [Min]	Wire Termination	Mating Orientation	Clamp Material - Plating	Positions Per Level	Voltage	Torque - Screw	Torque - Screw	Screw Material - Plating	Mounting Type	Number of Levels	Screw Thread	Color	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
Deca MB612-50010	16 A	Brass - Tin Plated	26 AWG	14 AWG	Screw - Rising Cage Clamp	Horizontal with Board	Brass - Nickel Plated	10	300 V	0.51 Nm	4.5 Lb-In	Steel Zinc Plated	Through Hole	1	M2.6	Green	5 mm	0.197 in	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
