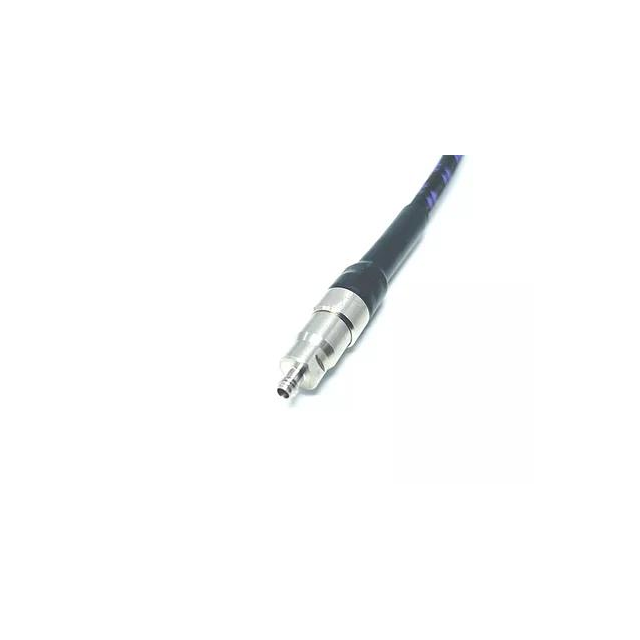

WT110-WF1WF1-12INCH
ActiveWITHWAVE CO LTD
COAX CBL 1.0MM TO 1.0MM 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WT110-WF1WF1-12INCH |
|---|---|
| 1st Connector | 1.0mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 1 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Color | Black |
| Frequency - Max [Max] | 110 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 1 mm |
| Style [Min] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1505.00 | |
| 5 | $ 1429.80 | |||
| 10 | $ 1354.50 | |||
Description
General part information
WT110-WF1WF1 Series
Cable Assembly Coaxial 1.0mm to 1.0mm 12.00" (304.80mm)
