Q-0301I0005001M

Active

Amphenol Custom Cable

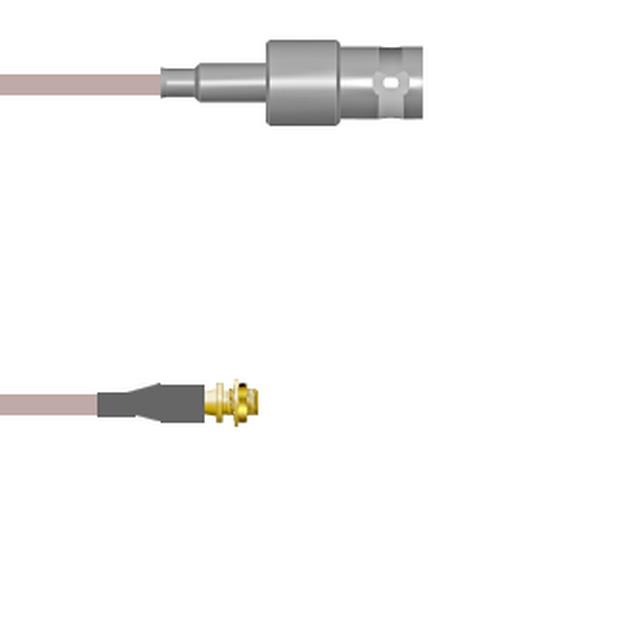

CBL ASSY BNC-MMCX JACK-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0301I0005001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0301I0005001M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0301I0 Series

Part	Cable Type	1st Contact Gender	Frequency - Max [Max]	Length	Length	Length	2nd Connector Mounting Feature	Features	Style	Overall Impedance	Color	1st Connector Mounting Type	1st Connector	2nd Connector	2nd Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0301I00051.5M	RG-316	Female	4 GHz	59.1 in	4.9 ft	1.5 m	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0003003M	RG-174	Female	4 GHz	118.1 in	9.8 '	3 m	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Black	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0003018i	RG-174	Female	4 GHz				Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Black	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0301I00052.5M	RG-316	Female	4 GHz	98.4 in	8.2 '	2.5 m	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0005009i	RG-316	Female	4 GHz	9 "		228.6 mm	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0005001M	RG-316	Female	4 GHz	39.4 in	3.3 ft	1 m	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0003024i	RG-174	Female	4 GHz	24 "		609.6 mm	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Black	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0005048i	RG-316	Female	4 GHz	48 in	4 ft	1200 mm	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I00030.5M	RG-174	Female	4 GHz	19.69 "		50 cm	Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Black	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female
Amphenol Custom Cable Q-0301I0005.25M	RG-316	Female	4 GHz				Bulkhead - Front Side Nut	Shielded	BNC to MMCX	50 Ohms	Copper	Free Hanging (In-Line)	BNC Jack	MMCX Jack	Panel Mount	Female		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 120.63
		25	$ 118.27
		50	$ 115.92
		100	$ 113.56
		250	$ 111.20

Description

General part information

Q-0301I0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
