2954934

Active

Phoenix Contact

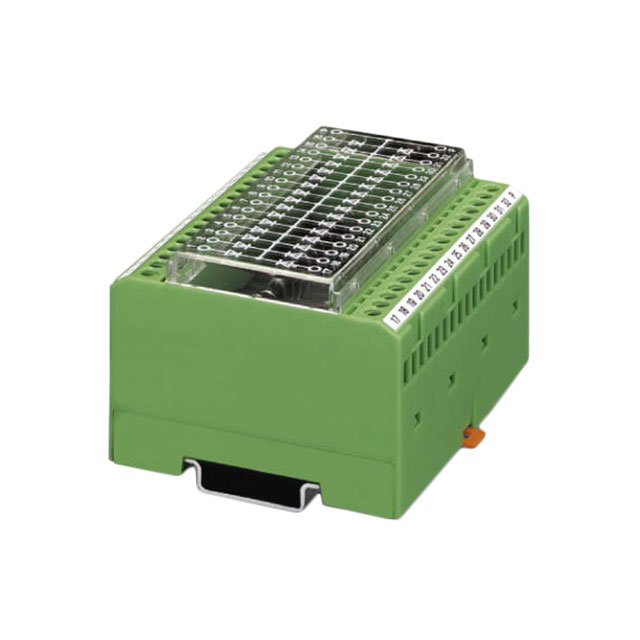

DIODE MODULE GP 1300V

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE MODULE GP 1300V

Technical Specifications

Parameters and characteristics for this part

Specification	2954934

Current - Reverse Leakage @ Vr	5 µA
Diode Configuration	32 Common Anode
Mounting Type	DIN Rail
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-20 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V

Part	Current - Reverse Leakage @ Vr	Supplier Device Package	Mounting Type	Diode Configuration	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)
Phoenix Contact 2954934	5 µA	Module	DIN Rail	32 Common Anode	Standard	150 °C	-20 °C	1300 V	Module
Phoenix Contact 2954918	5 µA	Module	DIN Rail	32 Common Cathode	Standard	150 °C	-20 °C	1300 V	Module	Standard Recovery >500ns	200 mA	800 mV	700 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 263.56

General part information

Diode Array 32 Common Anode 1300 V DIN Rail Module
