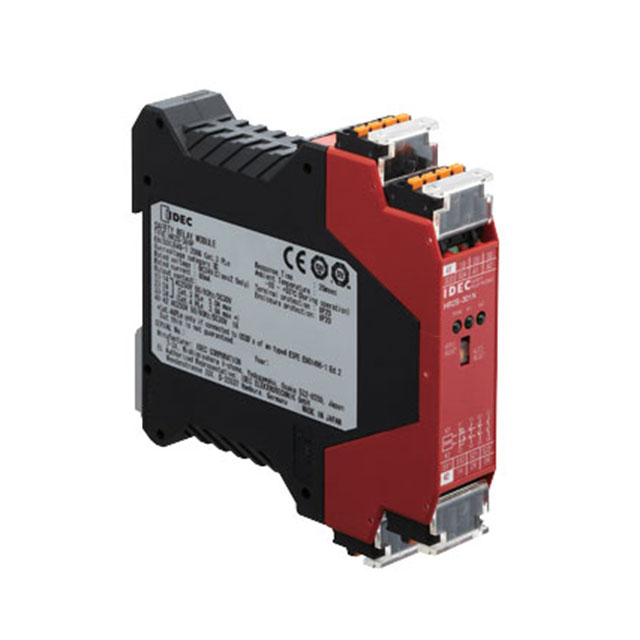

HR2S-301N

Obsolete

IDEC

RELAY SAFETY 4PST 5A 24V

Search across all available documentation for this part.

Obsolete

IDEC

RELAY SAFETY 4PST 5A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	HR2S-301N

Coil Voltage	24 VDC
Contact Form	4PST-3NO/1NC (3 Form A, 1 Form B)
Contact Rating (Current)	5 A
Mounting Type	DIN Rail
Operate Time	20 ms
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Screw Terminal

Part	Mounting Type	Operate Time	Termination Style	Contact Rating (Current)	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Coil Voltage	Contact Form	Switching Voltage [Max]
IDEC HR2S-301N	DIN Rail	20 ms	Screw Terminal	5 A	55 °C	-10 °C	24 VDC	4PST-3NO/1NC (3 Form A 1 Form B)	30 VDC 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY SAFETY 4PST 5A 24V
