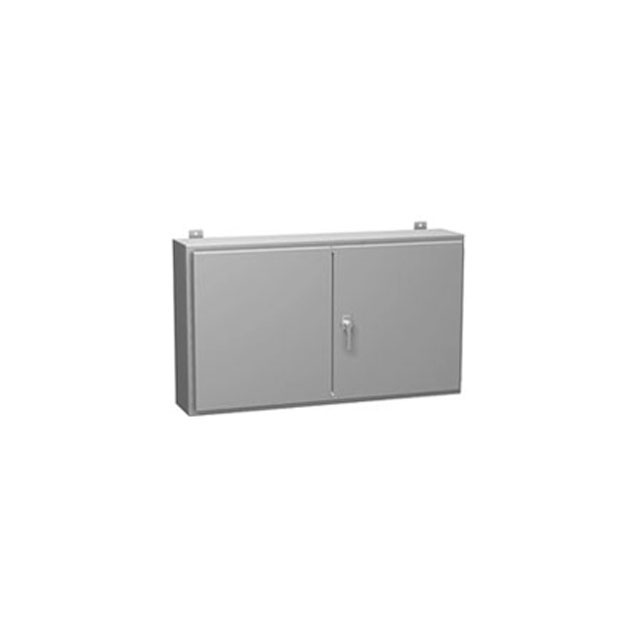

1422P8
ActiveHammond Manufacturing
BOX STEEL GRAY 42"L X 24"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEnclosure Overview
1422P8
ActiveHammond Manufacturing
BOX STEEL GRAY 42"L X 24"W
Deep-Dive with AI
DocumentsEnclosure Overview
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422P8 |
|---|---|
| Area (L x W) | 1008 in² |
| Area (L x W) | 6503 cm² |
| Color | Gray |
| Container Type | Box |
| Design | Hinged Door, Lid |
| Features | Interior Panels |
| Height [z] | 8 " |
| Height [z] | 203.2 mm |
| Material | Metal, Steel |
| Ratings | NEMA 12, UL-508, IP54 |
| Shipping Info | Drop shipped from the Manufacturer's Warehouse |
| Size / Dimension [x] | 42 in |
| Size / Dimension [x] | 1066.8 mm |
| Size / Dimension [y] | 24 " |
| Size / Dimension [y] | 609.6 mm |
| Thickness | 14 Gauge |
| Weight | 35.8 kg |
| Weight | 79 lbs |
1422 Series
| Part | Shipping Info | Color | Weight | Weight | Material | Features | Thickness | Ratings | Container Type | Height [z] | Height [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Design | Area (L x W) | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 249.5 kg | 550 lbs | Metal Steel | Dual Door | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 401.4 kg | 885 lbs | Metal Steel | Dual Door Feet | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 340.2 kg | 750 lbs | Metal Steel | Dual Door Feet | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 257.2 kg | 567 lbs | Metal Steel | Dual Door Feet | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 882.7 kg | 1946 lbs | Metal Steel | Doors - 3 Lockable | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 222.7 kg | 491 lbs | Metal Steel | Dual Door Feet | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 215.5 kg | 475 lbs | Metal Steel | Dual Door | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 257.2 kg | 567 lbs | Metal Steel | Dual Door Feet Quarter Turn Latches | ||||||||||||
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 35.8 kg | 79 lbs | Metal Steel | Interior Panels | 14 Gauge | IP54 NEMA 12 UL-508 | Box | 8 " | 203.2 mm | 24 " | 609.6 mm | 42 in | 1066.8 mm | Hinged Door Lid | 1008 in² | 6503 cm² |
Hammond Manufacturing | Drop shipped from the Manufacturer's Warehouse | Gray | 244.9 kg | 540 lbs | Metal Steel | Dual Door Feet |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 1160.55 | |
Description
General part information
1422 Series
Box Metal, Steel Gray Hinged Door, Lid 42.000" L x 24.000" W (1066.80mm x 609.60mm) X 8.000" (203.20mm)
