FH35C-39S-0.3SHW(50)

Active

Hirose Electric USA, Inc.

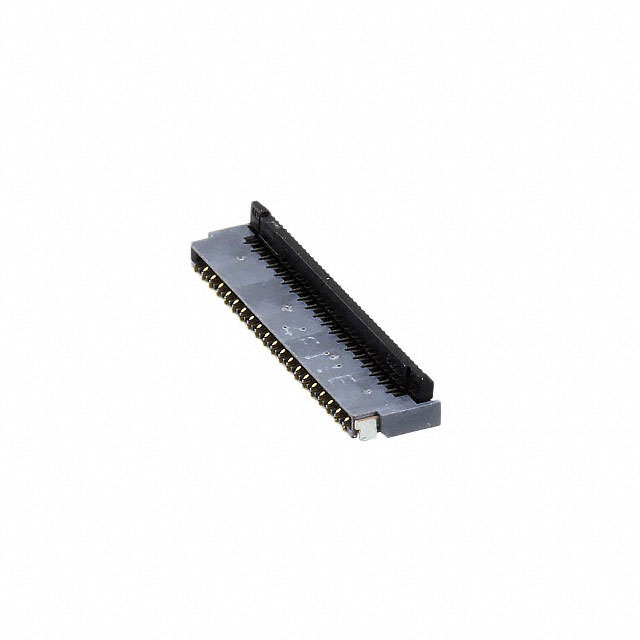

CONN FPC 39POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH35C Series Datasheet Datasheet

FH35C-39S-0.3SHW(50)

Active

Hirose Electric USA, Inc.

CONN FPC 39POS 0.3MM R/A

Deep-Dive with AI

DocumentsFH35C Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH35C-39S-0.3SHW(50)

Actuator Color	Black
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	39
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH35C Series

Part	Material Flammability Rating	Contact Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Locking Feature	Housing Color	Actuator Material	Housing Material	Connector/Contact Type	Number of Positions	Voltage Rating	Cable End Type	FFC, FCB Thickness	Contact Finish	Mating Cycles	Termination	Actuator Color	Flat Flex Type	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type
Hirose Electric USA, Inc. FH35C-27S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	27	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-45S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	45	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-21S-0.3SHW(99)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	21	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.03 Ám	1.25 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-23S-0.3SHW(10)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock		Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	23	30 VDC	Tapered	0.2 mm	Gold		Solder		FPC			0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-51S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	51	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-33S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	33	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-39S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	39	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-11S-0.3SHW(10)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock		Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	11	30 VDC	Tapered	0.2 mm	Gold		Solder		FPC			0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-19S-0.3SHW(10)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock		Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	19	30 VDC	Tapered	0.2 mm	Gold		Solder		FPC			0.88 mm	0.035 "	Surface Mount Right Angle
Hirose Electric USA, Inc. FH35C-9S-0.3SHW(50)	UL94 V-0	Phosphor Bronze	0.2 A	85 °C	-55 °C	0.012 in	0.3 mm	Backlock Flip Lock	Gray	Nylon Polyamide (PA)	Liquid Crystal Polymer (LCP)	Contacts Top and Bottom	9	30 VDC	Tapered	0.2 mm	Gold	10	Solder	Black	FPC	0.3 Ám	11.8 Áin	0.88 mm	0.035 "	Surface Mount Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.40

Description

General part information

FH35C Series

39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle
