E2006S.41.10
ActivePrysmian Group

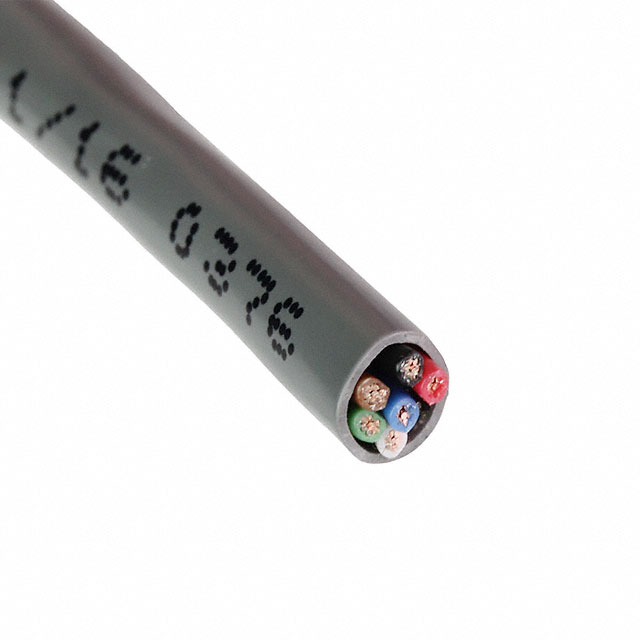

CABLE 6COND 22AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
E2006S.41.10
ActivePrysmian Group
CABLE 6COND 22AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2006S.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.39 mm |
| Jacket (Insulation) Diameter [diameter] | 0.173 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 500 ', 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 6 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.24 | |
| 1 | $ 270.47 | |||
| 5 | $ 221.29 | |||
| 5 | $ 48.47 | |||
| 10 | $ 37.70 | |||
| 10 | $ 172.12 | |||
| Spool | 1 | $ 284.46 | ||
| 2 | $ 270.56 | |||
| 3 | $ 262.70 | |||
| 5 | $ 253.06 | |||
| 7 | $ 246.88 | |||
| 10 | $ 240.46 | |||
| 25 | $ 224.59 | |||
Description
General part information
E2006S Series
6 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
