AM20N10-52PF
ActiveAnalog Power Inc.
MOSFET N-CH 100V 20A TO-220CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AM20N10-52PF |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 20 A |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 18 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1184 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-220-3 Full Pack |
| Power Dissipation (Max) | 60 W |
| Rds On (Max) @ Id, Vgs [Max] | 52 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.59 | |
| 50 | $ 1.28 | |||
| 100 | $ 1.01 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.70 | |||
| 2000 | $ 0.66 | |||
Description
General part information

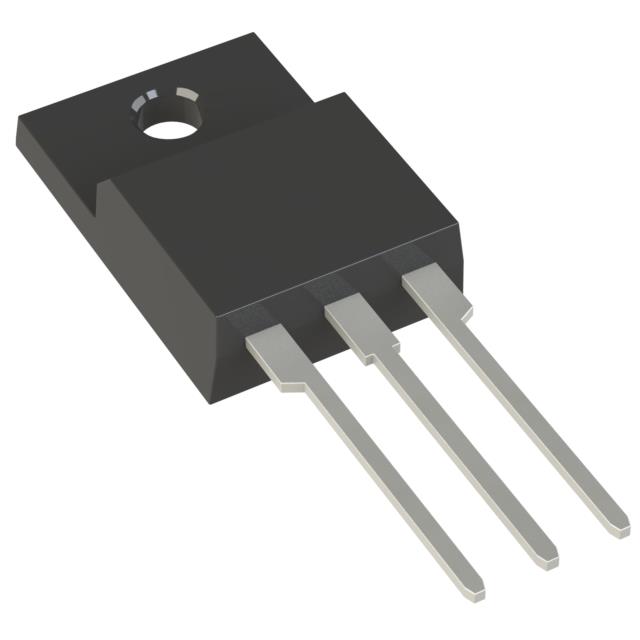

AM20N10-52PF
N-Channel 100 V 20A (Tc) 60W (Tc) Through Hole TO-220CFM
