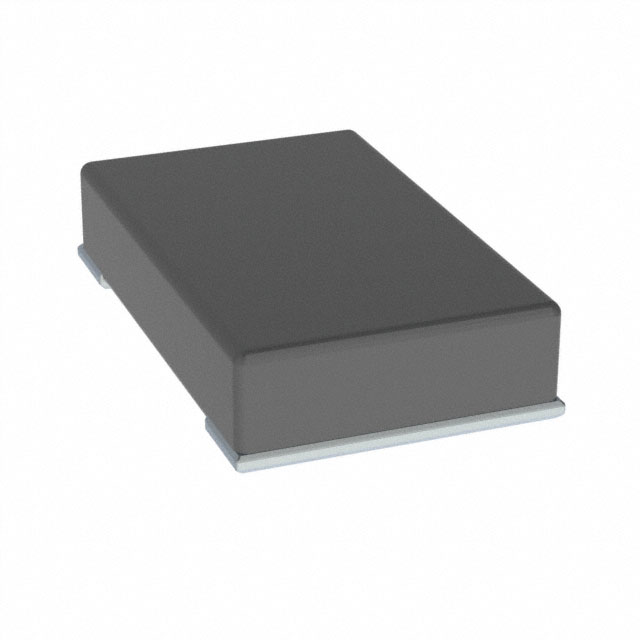

TLRH2ATTD12L0F

Active

KOA Speer Electronics, Inc.

RES 0.012 OHM 1% 1/2W 0805

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 0.012 OHM 1% 1/2W 0805

Technical Specifications

Parameters and characteristics for this part

Specification	TLRH2ATTD12L0F

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max)	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Package / Case	0805
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Ratings	AEC-Q200
Resistance	12 mOhms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Terminations	Power (Watts)	Power (Watts)	Package / Case	Composition	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Features	Supplier Device Package	Temperature Coefficient	Resistance
KOA Speer Electronics, Inc. TLRH2ATTD12L0F	155 °C	-65 ░C	AEC-Q200	2	0.5 W	0.5 W	0805	Metal Element	1 %	2 mm	0.079 in	0.049 in	1.25 mm	0.45 mm	0.018 "	Automotive AEC-Q200 Current Sense	0805	75 ppm/°C	12 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.23

General part information

12 mOhms ±1% 0.5W, 1/2W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Current Sense Metal Element
