16_C-50-3-3/133_NE

Active

Huber+Suhner, Inc.

16_C-50-3-3/133_NE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

16_C-50-3-3/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	16_C-50-3-3/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	223, RG-142
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	C Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Shield Termination	Contact Termination	Fastening Type	Housing Color	Body Material	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Material	Mounting Type	Body Finish	Dielectric Material	Cable Group	Connector Style
Huber+Suhner, Inc. 16_C-50-3-3/133_NE	Clamp	Solder	Bayonet Lock	Silver	Brass	Gold	11 GHz	1	50 Ohms	-65 ░C	165 °C	Male Pin Plug	Beryllium Copper Brass	Free Hanging (In-Line) Right Angle	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	223 RG-142	C Type
Huber+Suhner, Inc. 16_C-50-7-6/133_NE	Clamp	Solder	Bayonet Lock	Silver	Brass	Gold	11 GHz	1	50 Ohms	-65 ░C	165 °C	Male Pin Plug	Beryllium Copper Brass	Free Hanging (In-Line) Right Angle	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	214 RG-213	C Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 189.20

General part information

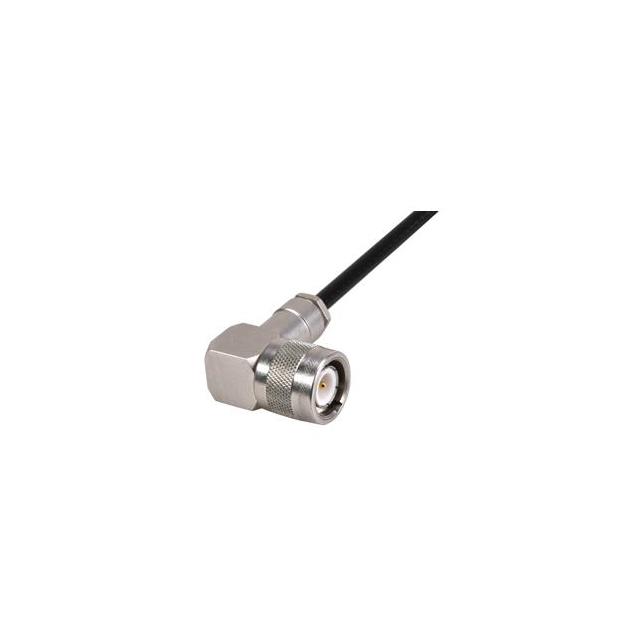

C Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
