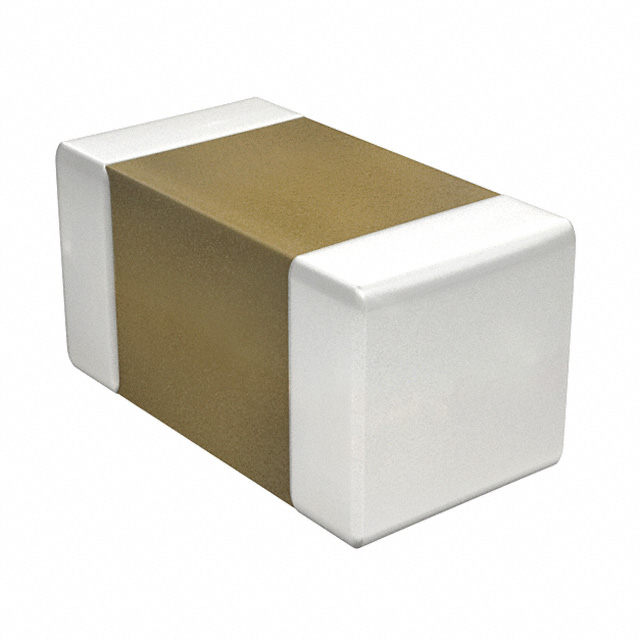

Z0603C102BSMST

Obsolete

KEMET

FERRITE BEAD 1 KOHM 0603 1LN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Z0603C102BSMST

Obsolete

KEMET

FERRITE BEAD 1 KOHM 0603 1LN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z0603C102BSMST

Current Rating (Max) [Max]	200 mA
DC Resistance (DCR) (Max) [Max]	700 mOhm
Height (Max)	0.95 mm
Height (Max) [Max]	0.037 in
Impedance @ Frequency	1 kOhms
Mounting Type	Surface Mount
Number of Lines	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.032 in
Size / Dimension [y]	0.8 mm

Z0603C Series

Part	Current Rating (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Mounting Type	DC Resistance (DCR) (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Impedance @ Frequency	Height (Max)	Height (Max) [Max]	Height (Max) [Max]	Filter Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]
KEMET Z0603C102BSMST	200 mA	-55 °C	125 °C	1	Surface Mount	700 mOhm	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	1 kOhms	0.95 mm	0.037 in
KEMET Z0603C101BPWZT	2 A	-40 °C	125 °C	1	Surface Mount	35 mOhm	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	100 Ohms		0.035 in	0.9 mm	Power Line
KEMET Z0603C331BPWZT	900 mA	-40 °C	125 °C	1	Surface Mount	130 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	330 Ohms		0.035 in	0.9 mm	Power Line
KEMET Z0603C471BPWZT	700 mA	-40 °C	125 °C	1	Surface Mount	150 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	470 Ohms		0.035 in	0.9 mm	Power Line
KEMET Z0603C101APMST		-55 °C	85 °C	1	Surface Mount	50 mOhm	0603 (1608 Metric)	1.6 mm	0.032 in	0.063 in	0.8 mm	100 Ohms	0.95 mm	0.037 in		Power Line
KEMET Z0603C601BPWZT	700 mA	-40 °C	125 °C	1	Surface Mount	170 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	600 Ohms		0.035 in	0.9 mm	Power Line
KEMET Z0603C221GPWZT	700 mA	-40 °C	125 °C	1	Surface Mount	170 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	220 Ohms		0.035 in	0.9 mm	Power Line
KEMET Z0603C102BPWZT	500 mA	-40 °C	125 °C	1	Surface Mount	350 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	1 kOhms		0.035 in	0.9 mm	Power Line
KEMET Z0603C230BPWST	4 A	-40 °C	125 °C	1	Surface Mount	7 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	23 Ohms				Power Line	1 mm	0.039 in
KEMET Z0603C601ASMST	350 mA	-55 °C	125 °C	1	Surface Mount	450 mOhm	0603 (1608 Metric)	1.6 mm	0.031 in	0.063 in	0.8 mm	600 Ohms	0.95 mm	0.037 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Z0603C Series

1 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 200mA 700mOhm
