88142-L25

Active

Cinch Connectivity Solutions Semflex

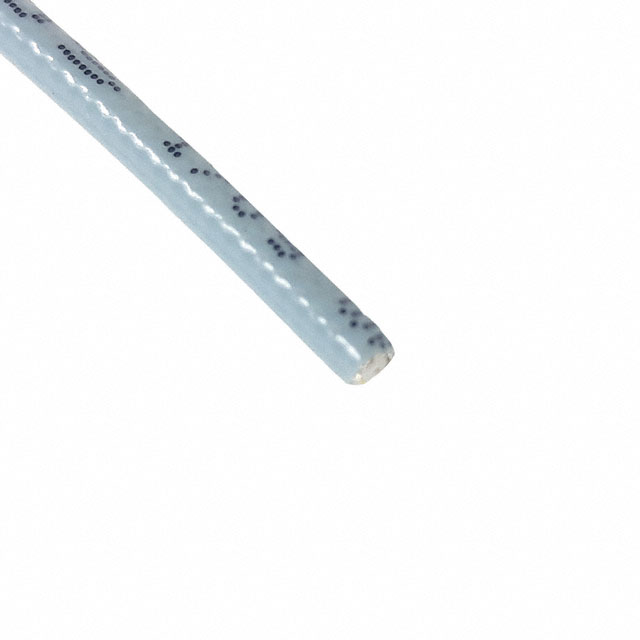

CABLE HP 120S 25 FT LENGTH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Semflex

CABLE HP 120S 25 FT LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	88142-L25

Cable Group	HP120S
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	1.88 mm
Dielectric Diameter [diameter]	0.074 "
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Polyurethane (PU)
Jacket Color	Blue
Length	25 ft
Length	7.62 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Material	Copper, Silver Coated
Shield Type	Foil, Braid
VoP, Velocity of Propagation	74

Part	Conductor Strand	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Group	Dielectric Material	Jacket (Insulation) Material	Jacket Color	VoP, Velocity of Propagation	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Impedance	Shield Type	Shield Material
Cinch Connectivity Solutions Semflex 88142-L25	Solid	Copper Silver Coated	1.88 mm	0.074 "	HP120S	Polytetrafluoroethylene (PTFE)	Fluorinated Ethylene-Propylene (FEP) Polyurethane (PU)	Blue	74	Coaxial	-65 ░C	200 °C	25 ft	7.62 m	50 Ohms	Braid Foil	Copper Silver Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable HP120S 25.0' (7.62m) 50 Ohms
