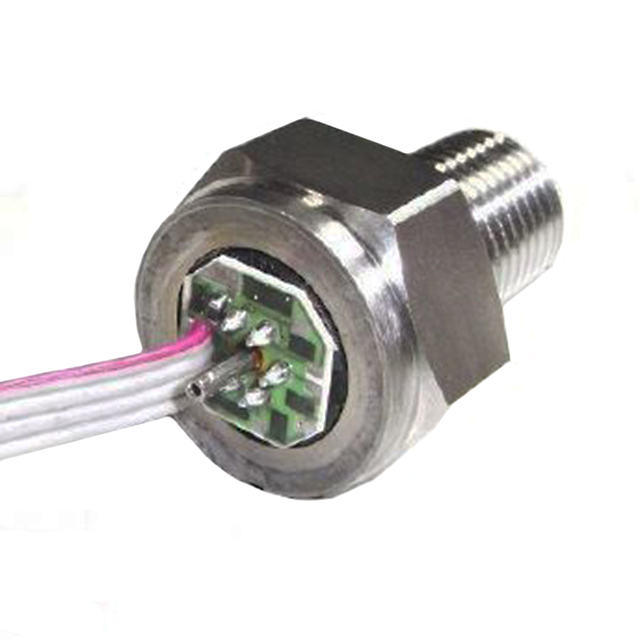

82CV-015G-R

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIG 0.1V

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 15PSIG 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Termination Style	Output [Min]	Output [Max]	Output Type	Port Style	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Pressure Type	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties 82CV-015G-R	Cylinder	Connector	0 mV	100 mV	Wheatstone Bridge	No Port	Temperature Compensated	14 V	10 VDC	Board Mount	Vented Gauge	0.1 %	125 °C	-40 °C	15 PSI	103.42 kPa	310.26 kPa	45 PSI
TE Connectivity Measurement Specialties 82CV-100A-R	Cylinder	Connector	0 mV	100 mV	Wheatstone Bridge	No Port	Temperature Compensated	14 V	10 VDC	Board Mount		0.1 %	125 °C	-40 °C			2068.43 kPa	300 PSI	689.48 kPa	100 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	48	$ 42.60

General part information

Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV (10V) Cylinder
