ZLTMM-117-71-TM-D-700

Active

Samtec Inc.

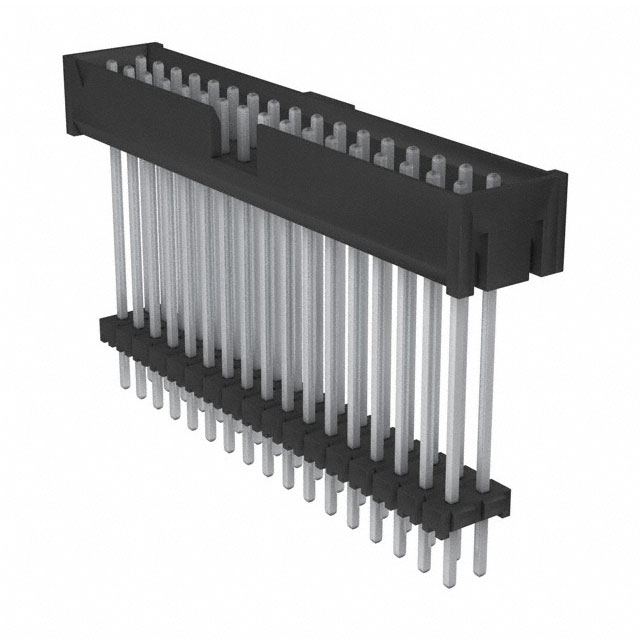

CONN HEADER VERT 34POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZLTMM Datasheet Datasheet +1

ZLTMM-117-71-TM-D-700

Active

Samtec Inc.

CONN HEADER VERT 34POS 2MM

Deep-Dive with AI

DocumentsZLTMM Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-117-71-TM-D-700

Connector Type	Elevated, Header
Contact Finish - Post	Tin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	17.78 mm
Insulation Height	0.7 in
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

ZLTMM-117 Series

Part	Contact Finish - Post	Connector Type	Fastening Type	Number of Rows	Overall Contact Length	Overall Contact Length	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Termination	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Features	Shrouding	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Insulation Material	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ZLTMM-117-71-TM-D-700	Tin	Elevated Header	Push-Pull	2	0.83 in	21.08 mm	Black	105 ░C	-55 °C	Square	Solder	34	0.079 in	2 mm	Phosphor Bronze	Keying Slot	Shrouded - 4 Wall	All	3.05 mm	0.12 in	Nylon Polyamide (PA)	Through Hole	0.135 in	3.43 mm	0.079 in	2 mm	17.78 mm	0.7 in	Male Pin
Samtec Inc. ZLTMM-117-03-T-D-440	Tin	Elevated Header	Push-Pull	2	0.535 in	13.59 mm	Black	105 ░C	-55 °C	Square	Solder	34	0.079 in	2 mm	Phosphor Bronze	Keying Slot	Shrouded - 4 Wall	All	2.54 mm	0.1 in	Nylon Polyamide (PA)	Through Hole			0.079 in	2 mm	11.18 mm	0.44 in	Male Pin
Samtec Inc. ZLTMM-117-73-G-D-385	Gold	Elevated Header	Push-Pull	2	0.476 in	12.09 mm	Black	125 °C	-55 °C	Square	Solder	34	0.079 in	2 mm	Phosphor Bronze	Keying Slot	Shrouded - 4 Wall	All	3.05 mm	0.12 in	Nylon Polyamide (PA)	Through Hole			0.079 in	2 mm	9.78 mm	0.385 in	Male Pin	Gold	0.096 in	2.43 mm	0.51 µm	20 µin	3 µin	0.076 µm
