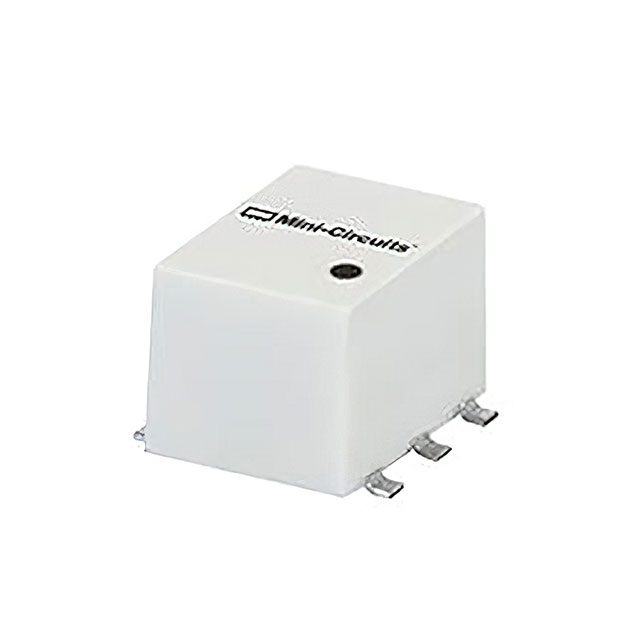

ADP-2-1W+
ActiveMINI-CIRCUITS
RF PWR DVDR 1MHZ-650MHZ 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADP-2-1W+
ActiveMINI-CIRCUITS
RF PWR DVDR 1MHZ-650MHZ 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-2-1W+ |
|---|---|
| Frequency [Max] | 650 MHz |
| Frequency [Min] | 1 MHz |
| Insertion Loss | 0.5 dB |
| Package / Case | 6-SMD, Flat Leads |
| Size / Dimension [x] | 7.87 mm |
| Size / Dimension [x] | 0.31 " |
| Size / Dimension [y] | 5.58 mm |
| Size / Dimension [y] | 0.22 " |
| Size / Dimension [z] | 4.11 mm |
| Size / Dimension [z] | 0.162 in |
| Specifications [Max] | 3 ° |
| Specifications [Min] | 20 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.55 | |
| 10 | $ 11.00 | |||
| 50 | $ 10.25 | |||
| 100 | $ 9.49 | |||
| 200 | $ 8.77 | |||
| 500 | $ 7.84 | |||
| Digi-Reel® | 1 | $ 11.55 | ||
| 10 | $ 11.00 | |||
| 50 | $ 10.25 | |||
| 100 | $ 9.49 | |||
| 200 | $ 8.77 | |||
| 500 | $ 7.84 | |||
| Tape & Reel (TR) | 1000 | $ 7.42 | ||
Description
General part information
ADP-2 Series
RF Power Divider 1 MHz ~ 650 MHz Isolation (Min) 20dB, 3° Imbalance (Max) 6-SMD, Flat Leads
