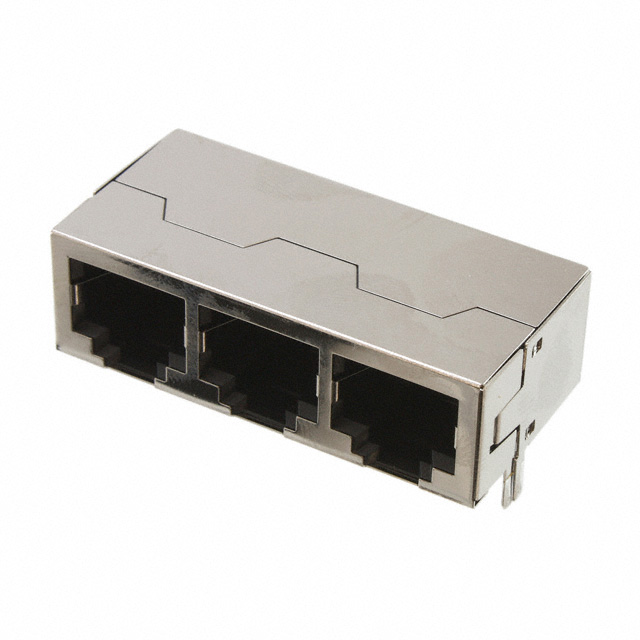

SS-668803S-NF

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-668803S-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	3
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Contact Finish	Tab Direction	Contact Material	Connector Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Mounting Type	Termination	Housing Material	Features	Number of Ports	Number of Positions/Contacts	Number of Rows
BEL MAGNETIC SOLUTIONS SS-668803S-NF	Gold	Down	Copper Alloy	Jack	90 °	0.76 Ám	30 Áin	Does Not Contain LED	85 °C	-40 °C	Shielded	Through Hole	Solder	Thermoplastic	Board Guide	3	8p8c (RJ45 Ethernet)	1
BEL MAGNETIC SOLUTIONS SS-668806S-A-NF-AC	Gold	Down	Copper Alloy	Jack	90 °	0.76 Ám	30 Áin	Does Not Contain LED	85 °C	-40 °C	Shielded EMI Finger	Through Hole	Solder	Thermoplastic	Board Guide	6	8p8c (RJ45 Ethernet)	1
BEL MAGNETIC SOLUTIONS SS-668804S-A-NF	Gold	Down	Copper Alloy	Jack	90 °	0.76 Ám	30 Áin	Does Not Contain LED	85 °C	-40 °C	Shielded	Through Hole	Solder	Thermoplastic	Board Guide	4	8p8c (RJ45 Ethernet)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
