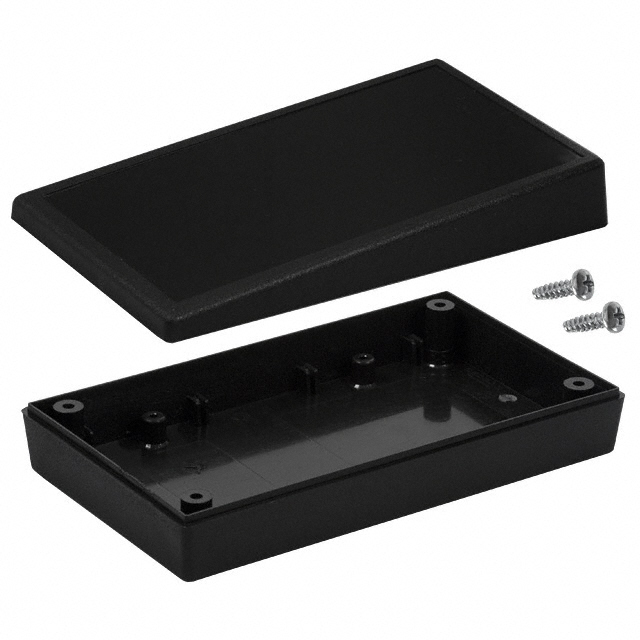

15SEMI,BK
ActiveSerpac
BOX ABS BLACK 5.63"L X 3.25"W
Deep-Dive with AI
Search across all available documentation for this part.
15SEMI,BK
ActiveSerpac
BOX ABS BLACK 5.63"L X 3.25"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15SEMI,BK |
|---|---|
| Area (L x W) | 18.3 in² |
| Area (L x W) | 118 cm² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides and Slanted Top |
| Features | PCB Supports, EMI Shielded |
| Height [z] | 1.51 in |
| Height [z] | 38.35 mm |
| Material | ABS, Plastic, EMI |
| Ratings | IP40, NEMA 4X, 14, 12 |
| Size / Dimension [x] | 5.63 in |
| Size / Dimension [x] | 143 mm |
| Size / Dimension [y] | 3.25 " |
| Size / Dimension [y] | 82.55 mm |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 99.79 g |
| Weight | 0.22 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
15SEMI Series
Box Plastic, ABS, EMI Black Split Sides and Slanted Top 5.630" L x 3.250" W (143.00mm x 82.55mm) X 1.510" (38.35mm)
Documents
Technical documentation and resources
No documents available
