TEHCBS-16-01

Active

Essentra Access Solutions

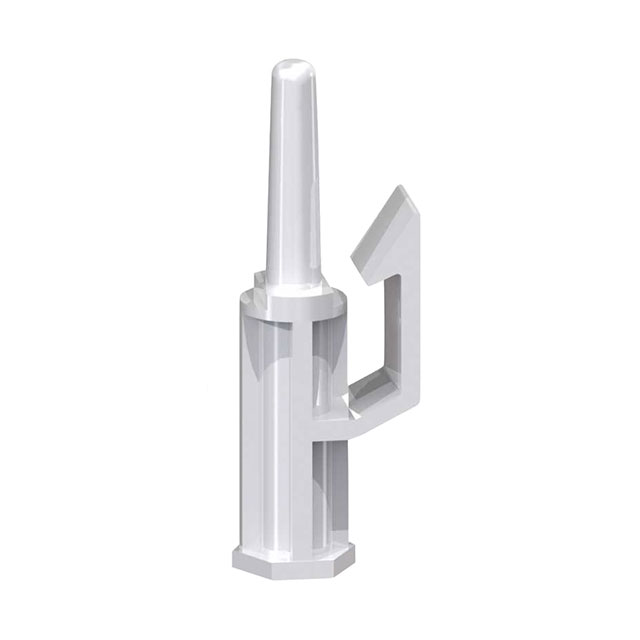

BRD SPT EDGE HOLD SCREW MNT 1"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT EDGE HOLD SCREW MNT 1"

Technical Specifications

Parameters and characteristics for this part

Specification	TEHCBS-16-01

Between Board Height	1 in
Between Board Height	25.4 mm
Holding Type	Edge Holding
Length - Overall	40.6 mm
Length - Overall	1.598 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.118 in
Mounting Hole Diameter [diameter]	3 mm
Mounting Type	Screw Mount
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall	Holding Type	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Between Board Height
Essentra Access Solutions TEHCBS-16-01	0.118 in	3 mm	Nylon	0.0625 "	0.062 "	1.57 mm	Screw Mount	0.157 "	3.99 mm	40.6 mm	1.598 in	Edge Holding	1 in	25.4 mm
Essentra Access Solutions TEHCBS-10-10-01	0.118 in	3 mm	Nylon	0.0625 "	0.062 "	1.57 mm	Screw Mount	0.157 "	3.99 mm			Edge Holding	0.625 in	15.88 mm	0.921 "	23.4 mm	0.625 in
Essentra Access Solutions TEHCBS-6-01	0.118 in	3 mm	Nylon	0.0625 "	0.062 "	1.57 mm	Screw Mount	0.157 "	3.99 mm	24.7 mm	0.972 in	Edge Holding	0.375 in	9.53 mm			0.375 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Edge Holding / Screw Mount Nylon 1.000" (25.40mm) 1"
