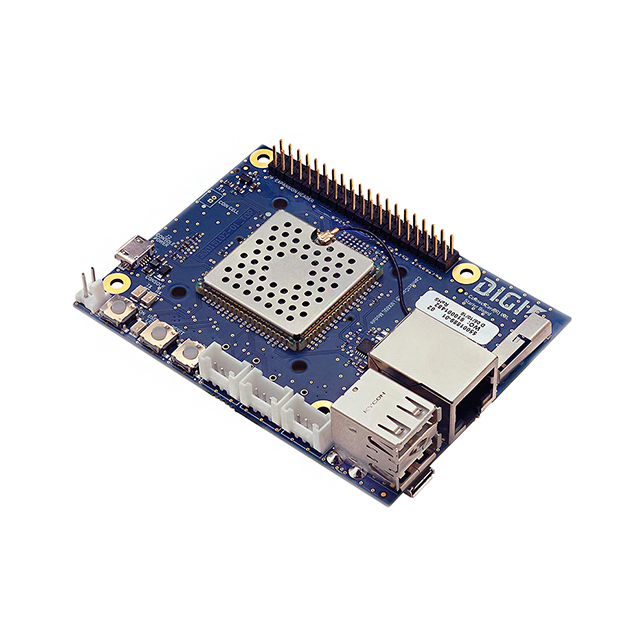

CC-SBE-WMX-JN58
ObsoleteDigi
SBC 528MHZ 1CORE 256MB/256MB RAM
Deep-Dive with AI
Search across all available documentation for this part.
CC-SBE-WMX-JN58
ObsoleteDigi
SBC 528MHZ 1CORE 256MB/256MB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-SBE-WMX-JN58 |
|---|---|
| Contents | SD Card |
| Core Processor | ARM Cortex-A7, i.MX6Ultralite |
| Digital I/O Lines | 8 |
| Ethernet | 100 Mbps, 10 Mbps |
| Ethernet | (1) |
| Expansion Site/Bus | TTL, I2C, GPIO, SPI, UART |
| Form Factor | SBC |
| Number of Cores | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 256 MB |
| Size / Dimension [x] | 87.12 mm |
| Size / Dimension [x] | 3.43 in |
| Size / Dimension [y] | 62.99 mm |
| Size / Dimension [y] | 2.48 in |
| Speed | 528 MHz |
| USB | USB 2.0 (2) |
| Video Outputs | RGB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CC-SBE-WMX Series
Single Board Computer 528MHz 1 Core 256MB/256MB RAM ARM Cortex-A7, i.MX6Ultralite
Documents
Technical documentation and resources
No documents available
