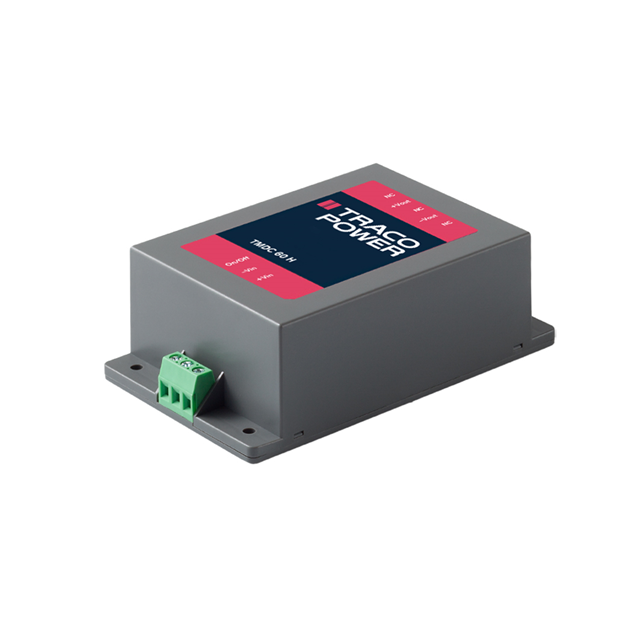

TMDC 60-7222H

Active

Traco Power

DC/DC CONVERTER +/-12V 60W

Search across all available documentation for this part.

Active

Traco Power

DC/DC CONVERTER +/-12V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage - Isolation	Voltage - Output 1	Type	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 2	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]
Traco Power TMDC 60-7222H	CB CE cURus	3000 V	12 V	Enclosed	Chassis Mount	80 V	2.5 A	2.5 A	-12 V	88 %	ITE (Commercial)	67.8 mm	2.67 in	38.1 mm	112 mm	1.5 "	4.41 "	90 °C	-40 °C	160 V	2
Traco Power TMDC 60-2418	CB CE cURus	2500 V	48 V	Enclosed	Chassis Mount	9 V				91 %	ITE (Commercial)	67.8 mm	2.67 in	38.1 mm	112 mm	1.5 "	4.41 "	85 °C	-40 °C	36 V	1	1.25 A
Traco Power TMDC 60-4818	CB CE cURus	2500 V	48 V	Enclosed	Chassis Mount	18 V				91 %	ITE (Commercial)	67.8 mm	2.67 in	38.1 mm	112 mm	1.5 "	4.41 "	85 °C	-40 °C	75 V	1	1.25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 2 Output 12V -12V 2.5A, 2.5A 160V Input
