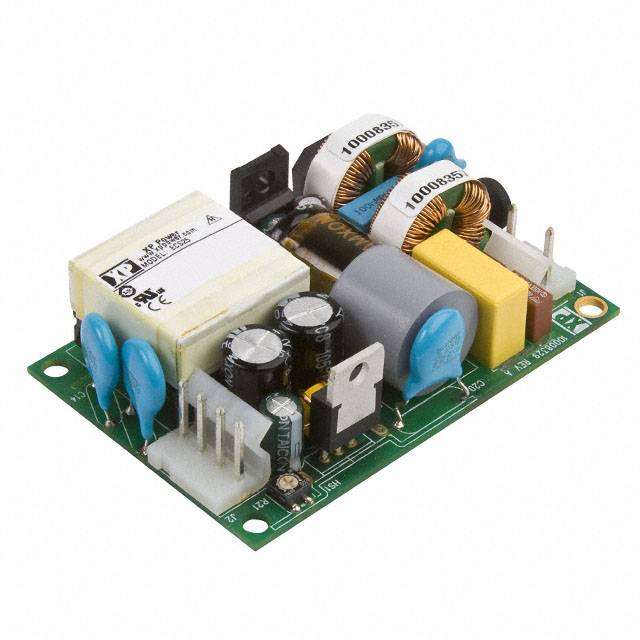

ECS25US15

Active

XP POWER

AC/DC CONVERTER 15V 25W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 15V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	ECS25US15

Applications	ITE (Commercial), Medical
Approval Agency	CB
Current - Output 1	1.67 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	25 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	24.2 mm
Size / Dimension [z]	24.13 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Features	Current - Output 1	Type	Approval Agency	Minimum Load Required	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Standard Number	Efficiency
XP POWER ECS25US24	1	264 VAC	80 VAC	25 W	24 V	4000 V	Adjustable Output DC Input Capable Universal Input	1.04 A	Open Frame	CB		ITE (Commercial) Medical	3 "	50.8 mm	76.2 mm	2 in	24.2 mm	24.13 mm	-20 °C	70 °C	Chassis Mount	62368-1	90 %
XP POWER ECS25US15	1	264 VAC	80 VAC	25 W	15 V	4000 V	Adjustable Output DC Input Capable Universal Input	1.67 A	Open Frame	CB		ITE (Commercial) Medical	3 "	50.8 mm	76.2 mm	2 in	24.2 mm	24.13 mm	-20 °C	70 °C	Chassis Mount	62368-1	90 %
