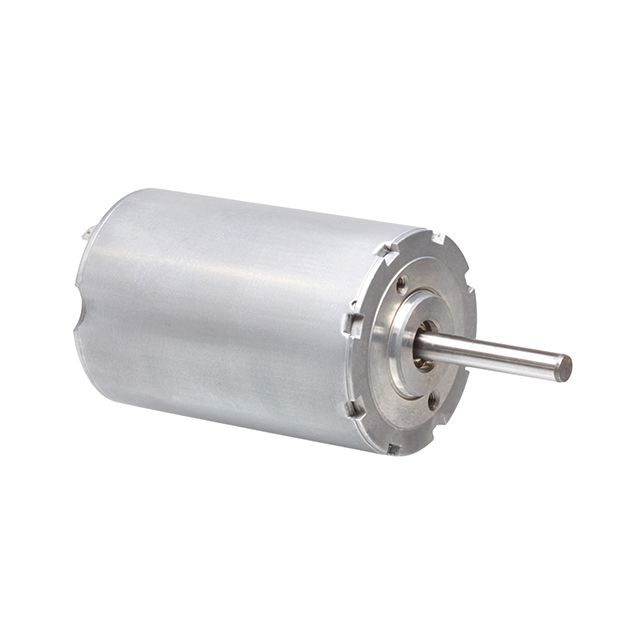

BLDC40S40A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 4050 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLDC40S40A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 4050 RPM 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLDC40S40A |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 0.984 in |
| Length - Shaft and Bearing | 25 mm |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.102 in |
| Mounting Hole Spacing | 28 mm |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 109 W |
| RPM | 4050 RPM |
| Size / Dimension [diameter] | 40 mm |
| Size / Dimension [diameter] | 1.575 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 256 mNm |
| Torque - Rated (oz-in / mNm) | 36.26 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 0.882 lb |
| Weight | 400.07 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 318.15 | |
Description
General part information
BLDC40S40 Series
Brushless (BLDC) DC Motor Standard 4050 RPM 109W 24VDC
