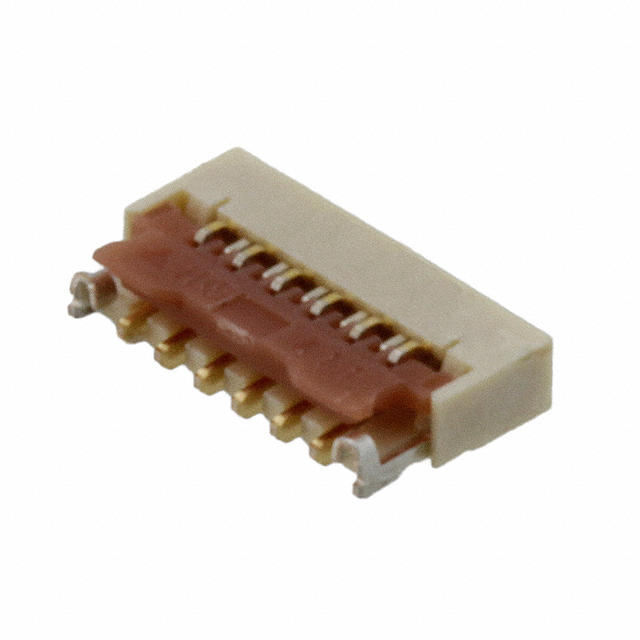

FH36W-11S-0.3SHW(99)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 11POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FH36W-11S-0.3SHW(99)

Active

Hirose Electric USA, Inc.

CONN FPC BOTTOM 11POS 0.3MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH36W-11S-0.3SHW(99)

Actuator Color	Brown
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 HB
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	11
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH36 Series

Part	Pitch [x]	Pitch [x]	Housing Color	Flat Flex Type	FFC, FCB Thickness	Number of Positions	Contact Finish	Contact Material	Material Flammability Rating	Mounting Type	Locking Feature	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Actuator Color	Connector/Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Housing Material	Cable End Type	Voltage Rating	Actuator Material	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH36W-15S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	15	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-51S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	51	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-11S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	11	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-23S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	23	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-23S-0.3SHW(50)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	23	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH36W-61S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	61	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36-35S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	35	Gold	Phosphor Bronze	UL94 V-0	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP)	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-51S-0.3SHW(50)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	51	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH36W-33S-0.3SHW(99)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	33	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH36W-11S-0.3SHW(50)	0.012 in	0.3 mm	Beige	FPC	0.2 mm	11	Gold	Phosphor Bronze	UL94 HB	Surface Mount Right Angle	Flip Lock	10	1 mm	0.039 in	Brown	Contacts Bottom	0.2 A	85 °C	-55 °C	Solder	Liquid Crystal Polymer (LCP) Halogen Free	Tabbed	30 VDC	Nylon Polyamide (PA)	19.7 µin	0.5 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.78
		10	$ 2.52
		25	$ 2.39
		50	$ 2.33
		100	$ 2.22
		250	$ 1.94
	Digi-Reel®	1	$ 2.78
		10	$ 2.52
		25	$ 2.39
		50	$ 2.33
		100	$ 2.22
		250	$ 1.94
	Tape & Reel (TR)	500	$ 1.89
		1000	$ 1.61
		1500	$ 1.56
		2500	$ 1.50
		5000	$ 1.44

Description

General part information

FH36 Series

11 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
