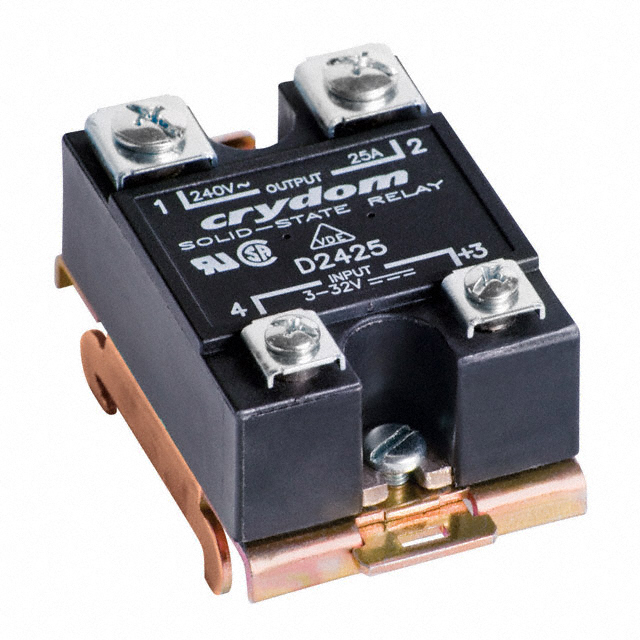

HS501DR-D2425
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
HS501DR-D2425
ActiveSensata-Crydom
SSR RELAY SPST-NO 10A 24-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HS501DR-D2425 |
|---|---|
| Approval Agency | UL, CE, VDE, CSA |
| Load Current | 10 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck with Heat Sink |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.08 | |
| 10 | $ 87.70 | |||
| 50 | $ 83.71 | |||
| 100 | $ 81.25 | |||
Description
General part information
HS501 Series
Solid State SPST-NO (1 Form A) Hockey Puck with Heat Sink
