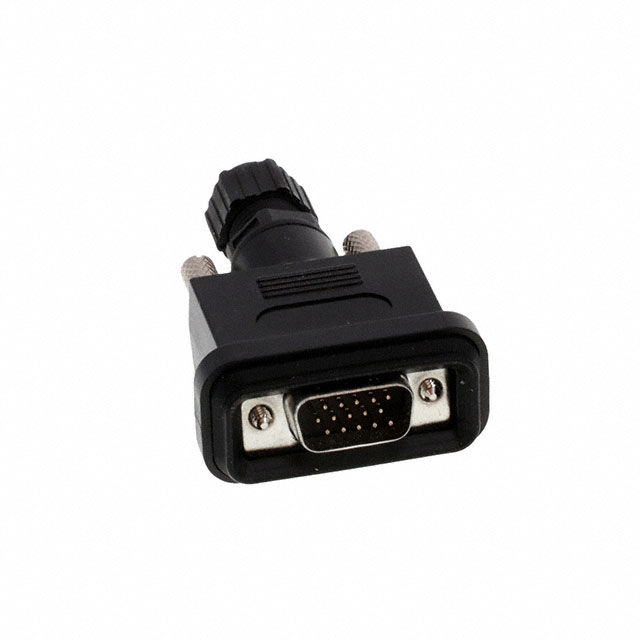

DCCHD15M
ActiveSwitchcraft Inc.
CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DCCHD15M
ActiveSwitchcraft Inc.
CONN D-SUB HD PLUG 15P SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCCHD15M |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Thermoplastic |
| Flange Feature | Cable Side, Male Jackscrew |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.88 | |
| 10 | $ 26.17 | |||
| 25 | $ 23.72 | |||
| 50 | $ 22.07 | |||
| 100 | $ 20.57 | |||
| 250 | $ 18.80 | |||
| 500 | $ 17.65 | |||
Description
General part information
DCCHD1 Series
15 Position D-Sub, High Density Plug, Male Pins Connector
