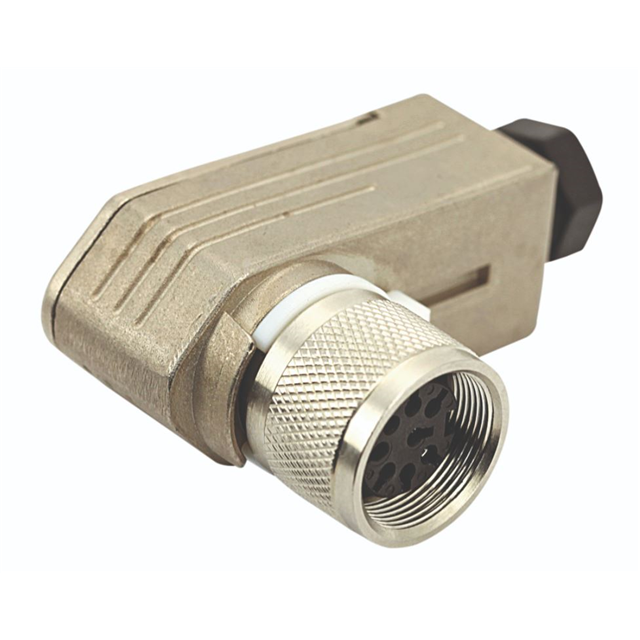

C091 11F006 000 2

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 6PS INLINE RA

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 6PS INLINE RA

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11F006 000 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Type	For Female Sockets

Part	Insert Material	Contact Size	Ingress Protection	Note	Connector Type	Shell Finish	Shielding	Shell Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Material Flammability Rating	Number of Positions	Type	Features	Mounting Type	Shell Size - Insert	Contact Shape	Orientation
Amphenol Tuchel Industrial C091 11F006 000 2	Thermoplastic	1.5 mm	IP65 IP67 IP69K	Contacts Not Included	Plug Housing	Nickel	Shielded	Die Cast	Crimp	100 °C	-40 °C	Silver	UL94 V-0	6	For Female Sockets	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	M16-6	Circular	Keyed
Amphenol Tuchel Industrial C091 11F006 001 2	Thermoplastic	1.5 mm	IP65 IP67 IP69K	Contacts Not Included	Plug Housing	Nickel	Shielded	Die Cast	Crimp	100 °C	-40 °C	Silver	UL94 V-0	6	For Female Sockets	Backshell Coupling Nut	Free Hanging (In-Line) Right Angle	M16-6	Circular	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.32

General part information

6 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
