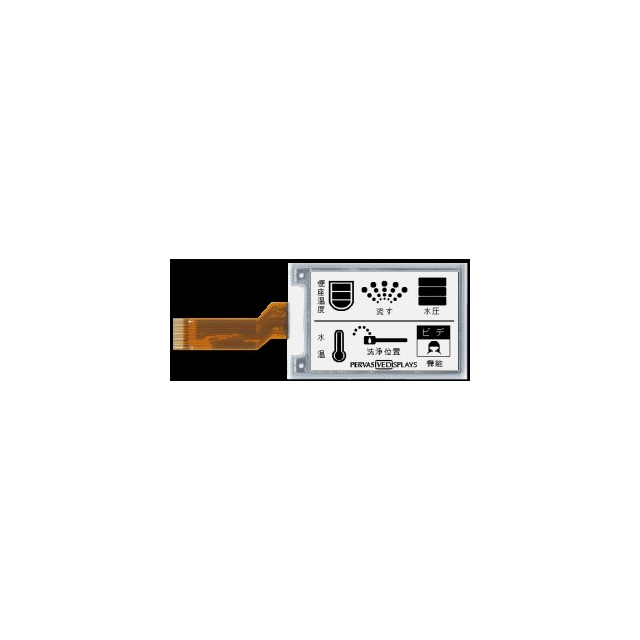

E2271CS091

Unknown

Pervasive Displays

2.7" EPD, A-MB W.ITC

Search across all available documentation for this part.

Unknown

Pervasive Displays

2.7" EPD, A-MB W.ITC

Technical Specifications

Parameters and characteristics for this part

Specification	E2271CS091

Background Color	White
Backlight	Without Backlight
Diagonal Screen Size	68.83 mm
Diagonal Screen Size	2.71 in
Display Mode	Reflective
Display Type	TFT - Electronic Paper Display (EPD)
Dot Pitch [x]	0.22 mm
Dot Pitch [y]	0.22 mm
Dot Pixels [x]	264
Dot Pixels [y]	176
Graphics Color	Black
Interface	SPI
Viewing Area [x]	57.29 mm
Viewing Area [y]	38.19 mm

Part	Dot Pixels [y]	Dot Pixels [x]	Display Type	Graphics Color	Background Color	Backlight	Viewing Area [y]	Viewing Area [x]	Diagonal Screen Size	Diagonal Screen Size	Interface	Dot Pitch [y]	Dot Pitch [x]	Display Mode
Pervasive Displays E2271CS091	176	264	TFT - Electronic Paper Display (EPD)	Black	White	Without Backlight	38.19 mm	57.29 mm	68.83 mm	2.71 in	SPI	0.22 mm	0.22 mm	Reflective
Pervasive Displays E2271CS021	176	264	TFT - Electronic Paper Display (EPD)	Black	White	Without Backlight	38.19 mm	57.29 mm	68.58 mm	2.7 "	SPI			Reflective
Pervasive Displays E2271BS021	176	264	TFT - Electronic Paper Display (EPD)	Black	White	Without Backlight	38.19 mm	57.29 mm	68.58 mm	2.7 "	SPI			Reflective
Pervasive Displays E2271PS091	176	264	TFT - Color	Black White		Without Backlight			68.83 mm	2.71 in	SPI	0.22 mm	0.22 mm
Pervasive Displays E2271FS091	176	264	TFT - Color	Black Red White			38.19 mm	57.29 mm	68.58 mm	2.7 "	SPI	0.22 mm	0.22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	204	$ 9.18

General part information

Graphic LCD Display Module Reflective Black TFT - Electronic Paper Display (EPD) SPI 2.71" (68.83mm) 264 x 176

Technical documentation and resources

No documents available
