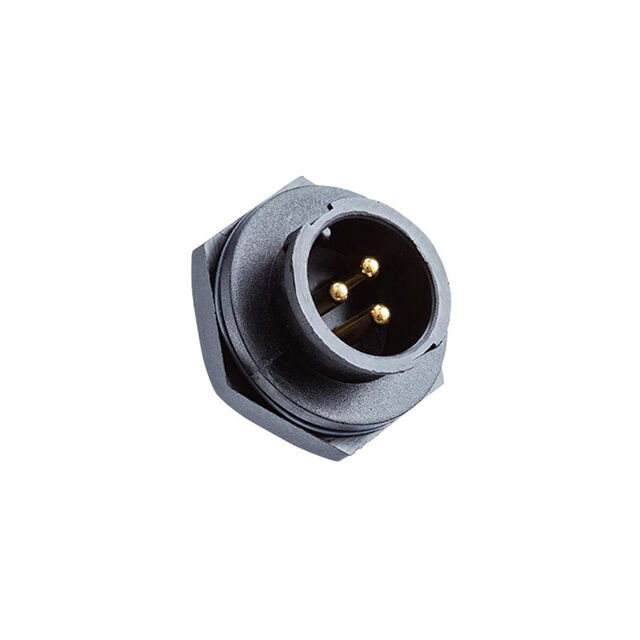

ACD-09RMMS-LC7001

Active

Amphenol LTW

MIDDLE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MIDDLE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-09RMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Ingress Protection	Fastening Type	Color	Shell Material	Orientation	Voltage Rating	Insert Material	Shielding	Mounting Feature	Contact Finish - Mating	Material Flammability Rating	Shell Size - Insert	Current Rating (Amps)	Primary Material	Contact Material
Amphenol LTW ACD-09RMMS-LC7001	-40 °C	105 ░C	Male Pins Receptacle	9	IP67 - Dust Tight Waterproof	Bayonet Lock	Black	Glass Filled Nylon Polyamide (PA)	Keyed	250 VAC	Polyamide (PA) Nylon Glass Filled	Unshielded	Bulkhead - Rear Side Nut	Gold	UL94 V-0	C	5 A	Plastic	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.94

General part information

9 Position Circular Connector Receptacle, Male Pins Solder Cup
