DME-05-S-S

Active

Adam Tech

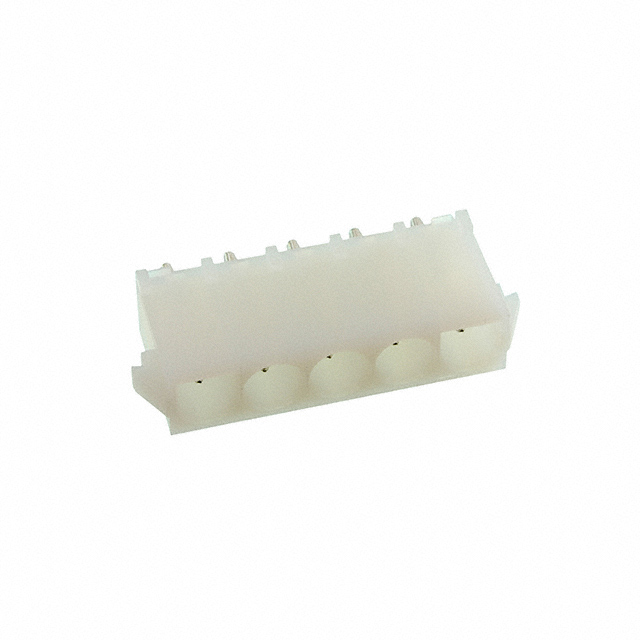

6.35MM PCB HEADER, 5 POSITION

Search across all available documentation for this part.

Active

Adam Tech

6.35MM PCB HEADER, 5 POSITION

Technical Specifications

Parameters and characteristics for this part

Specification	DME-05-S-S

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	13 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Termination	Solder
Voltage Rating	600 VAC

Part	Connector Type	Number of Rows	Contact Shape	Contact Material	Voltage Rating	Material Flammability Rating	Contact Finish - Post	Termination	Insulation Height	Insulation Height	Fastening Type	Applications	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features
Adam Tech DME-05-S-S	Receptacle	1	Circular	Brass	600 VAC	UL94 V-2	Tin	Solder	0.55 in	13.97 mm	Locking Ramp	General Purpose	Through Hole	All	0.177 in	4.5 mm	Female Socket	Natural	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	13 A
Adam Tech DME-05-S-P-S	Receptacle	1	Circular	Phosphor Bronze	600 VAC	UL94 V-2	Tin	Solder	0.55 in	13.97 mm	Locking Ramp	General Purpose	Through Hole	All	0.177 in	4.5 mm	Female Socket	Natural	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	11 A	Board Guide
Adam Tech DME-05-S-S-V0	Receptacle	1	Circular	Brass	600 VAC	UL94 V-0	Tin	Solder	0.55 in	13.97 mm	Locking Ramp	General Purpose	Through Hole	All	0.177 in	4.5 mm	Female Socket	Natural	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	11 A
