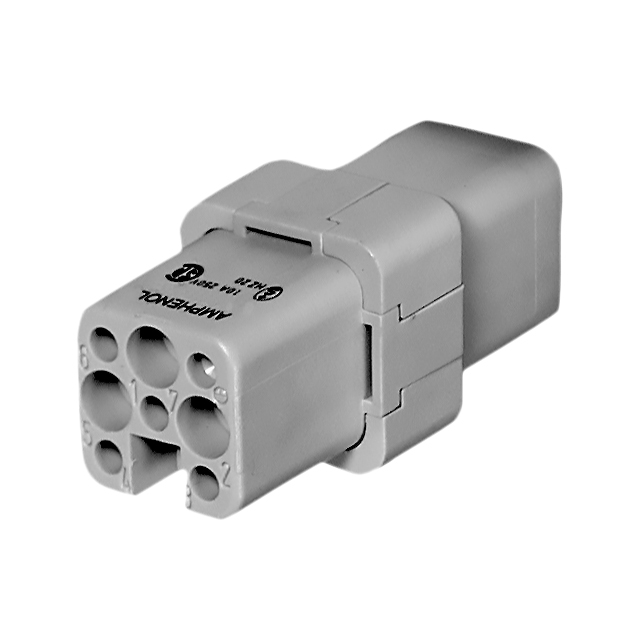

C146 10B008 500 2

Active

Amphenol Tuchel Industrial

INSERT FEMALE 8POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 8POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10B008 500 2

Color	Gray
Connector Type	Insert without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Female
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Termination Style	Crimp
Voltage Rating	600 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions	Termination Style	Connector Type	Color	Voltage Rating	Size	Gender	Contact Type	Current Rating (Amps)	Housing Material
Amphenol Tuchel Industrial C146 10B008 500 2	125 °C	-40 °C	UL94 V-0	8	Crimp	Insert without Contacts	Gray	600 V	A3/4	Female	C146 D DD heavy\|mate® M	15 A	Polybutylene Terephthalate (PBT) Polyester

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.44

General part information

Female Insert without Contacts Gray 8 Position Crimp
