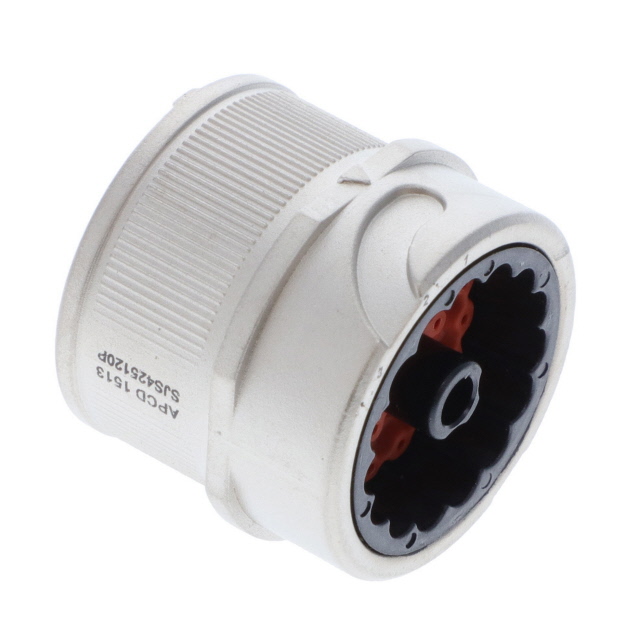

SJS425120P

Active

AMPHENOL PCD

CONN RCPT HSG MALE 25POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN RCPT HSG MALE 25POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SJS425120P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	22D
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Shell Finish	Nickel over Copper
Shell Material	Polyetherimide (PEI)
Shell Size - Insert	14
Shielding	Shielded
Type	For Male Pins

Part	Shell Finish	Contact Size	Contact Type	Shell Material	Contact Shape	Shielding	Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Note	Connector Type	Housing Color	Mounting Type	Shell Size - Insert	Orientation	Ingress Protection	Fastening Type
AMPHENOL PCD SJS425120P	Nickel over Copper	22D	Crimp	Polyetherimide (PEI)	Circular	Shielded	For Male Pins	UL94 V-0	-65 ░C	347 °F	Contacts Not Included	Receptacle Housing	Black	Free Hanging (In-Line)	14	A	IP67 - Dust Tight Waterproof	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 63.57

General part information

25 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
