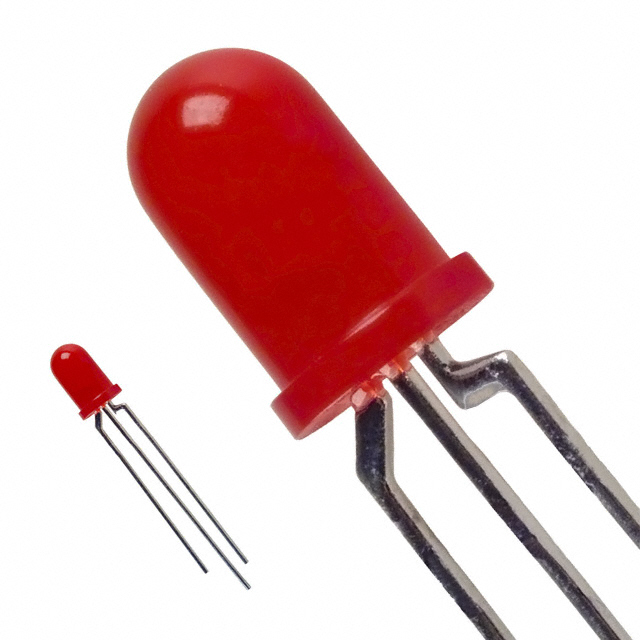

SSL-LX5099LBI-SRD

Obsolete

Lumex Opto/Components Inc.

LED RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX5099LBI-SRD

Obsolete

Lumex Opto/Components Inc.

LED RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL-LX5099LBI-SRD

Color	Red
Configuration	Standard
Current - Test	10.5 mA
Height (Max) [Max] [z]	11 mm
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	0.01 mcd
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Supplier Device Package	T-1 3/4
Viewing Angle	60 °
Wavelength - Peak	660 nm

SSL-LX5099 Series

Part	Viewing Angle	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Lens Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Current - Test	Color	Lens Size	Lens Size	Package / Case	Height (Max) [Max] [z]	Configuration	Lens Style	Millicandela Rating	Size / Dimension [diameter]	Millicandela Rating [custom]	Current - Test	Millicandela Rating [custom]	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSL-LX5099IGW	60 °	565 nm 635 nm	45 mcd	55 mcd	Diffused	White	2 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Red	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Common Cathode	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5099LBI-SRD	60 °	660 nm			Diffused	Red		Through Hole	T-1 3/4	10.5 mA	Red	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Standard	Round with Domed Top	0.01 mcd
Lumex Opto/Components Inc. SSL-LX5099SOPGW	60 °	555 nm 610 nm	20 mcd		Diffused	White	2 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Orange	T-1 3/4	5 mm	Radial	8.6 mm	Independent	Round with Domed Top		5 mm	900 mcd
Lumex Opto/Components Inc. SSL-LX5099GIW	60 °	565 nm 635 nm	45 mcd	55 mcd	Diffused	White	2 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Red	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Common Cathode	Round with Domed Top
Lumex Opto/Components Inc. SSL-LX5099SISYW	60 °			800 mcd	Diffused	White	2 V 2 V	Through Hole	T-1 3/4		Red Yellow	T-1 3/4	5 mm	Radial	8.6 mm	Independent	Round with Domed Top		5 mm		20mA Red 20mA Yellow	500 mcd
Lumex Opto/Components Inc. SSL-LX5099IGW-CA	60 °	565 nm 635 nm			Diffused	White	2 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Red	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Common Anode	Round with Domed Top						6mcd Green 6mcd Red
Lumex Opto/Components Inc. SSL-LX5099IGW-02	60 °	565 nm 635 nm	45 mcd	55 mcd	Diffused	White	2 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Red	T-1 3/4	5 mm	Radial	8.6 mm	Independent	Round with Domed Top		5 mm
Lumex Opto/Components Inc. SSL-LX5099YGW	60 °	565 nm 585 nm			Diffused	White	2.1 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Yellow	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Common Cathode	Round with Domed Top						20mcd Green 20mcd Yellow
Lumex Opto/Components Inc. SSL-LX5099YGW-CA	60 °	565 nm 585 nm			Diffused	White	2.1 V 2.2 V	Through Hole	T-1 3/4	20 mA 20 mA	Green Yellow	T-1 3/4	5 mm	Radial - 3 Leads	11 mm	Common Anode	Round with Domed Top						20mcd Green 20mcd Yellow
Lumex Opto/Components Inc. SSL-LX5099USBSIW	60 °	470 nm 636 nm		100 mcd	Diffused	White	2 V 3.5 V	Through Hole	T-1 3/4		Blue Red	T-1 3/4	5 mm	Radial	8.6 mm	Independent	Round with Domed Top		5 mm					20 mA	20 mA	80 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSL-LX5099 Series

Red LED Indication - Discrete Radial - 3 Leads

Documents

Technical documentation and resources

No documents available
