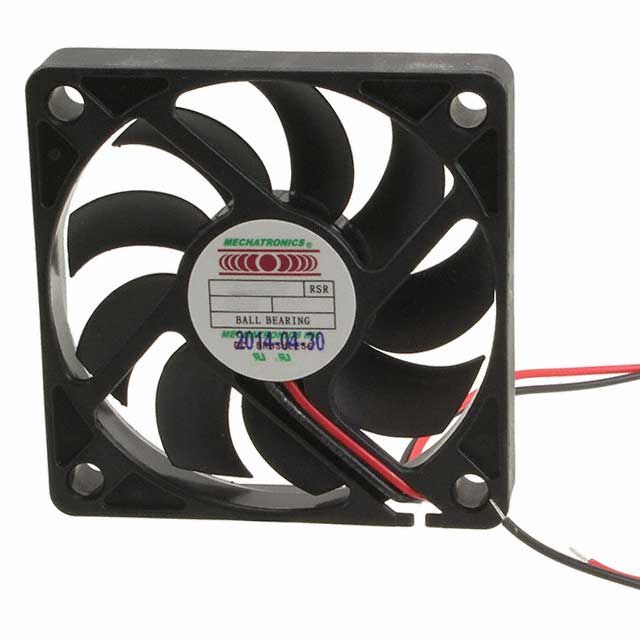

MB6010M12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X10.2MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 60X10.2MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MB6010M12B-RSR

Approval Agency	UL, cUL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	22.5 dB
RPM	3200 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.06 in H2O
Static Pressure	14.9 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	26.76 g
Weight	0.059 lb
Width [x]	10.2 mm

Part	Termination	Features	Noise	RPM	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Voltage - Rated	Weight	Weight	Fan Type	Width [x]	Bearing Type	Air Flow	Air Flow
Mechatronics Bearing Group MB6010M12B-RSR	2 Wire Leads	Thermal Overload Protector (TOP)	22.5 dB	3200 RPM	60 mm	60 mm	Polybutylene Terephthalate (PBT)	cUL UL	13.8 VDC	6 VDC	0.06 in H2O	14.9 Pa	12 VDC	26.76 g	0.059 lb	Tubeaxial	10.2 mm	Ball
Mechatronics Bearing Group MB6010X12B1-RSR-NS-L18	3 Wire Leads	Speed Sensor (Tach) Thermal Overload Protector (TOP)	35 dB	5300 RPM	60 mm	60 mm	Polybutylene Terephthalate (PBT)	cUL UL	13.8 VDC	6 VDC	0.13 in H2O	32.4 Pa	12 VDC	26.76 g	0.059 lb	Tubeaxial	10.2 mm	Ball	18.7 CFM	0.524 mł/min
Mechatronics Bearing Group MB6010X12B-RSR	2 Wire Leads	Thermal Overload Protector (TOP)	35 dB	5300 RPM	60 mm	60 mm	Polybutylene Terephthalate (PBT)	cUL UL	13.8 VDC	6 VDC	0.13 in H2O	32.4 Pa	12 VDC	26.76 g	0.059 lb	Tubeaxial	10.2 mm	Ball	18.7 CFM	0.524 mł/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 11.0 CFM (0.308m³/min) 2 Wire Leads
