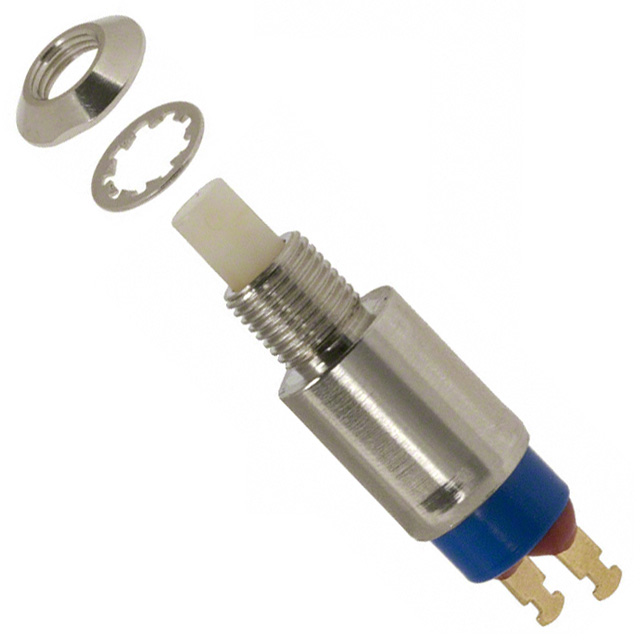

401ZBE

Active

APEM

SWITCH PUSH SPST 0.4VA 20V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	401ZBE

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST
Color - Actuator/Cap	White
Current Rating (Amps)	0.4 VA
Electrical Life	40000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Off
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Voltage Rating - DC	Type	Termination Style	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Electrical Life	Switch Function	Actuator Marking	Voltage Rating - AC	Mounting Type	Circuit	Current Rating (Amps)
APEM 401ZBE	20 V	Standard	Solder Lug	Round Plunger	-30 ░C	85 °C	0.25 in	White	40000 Cycles	On-Off	No Marking	20 V	Panel Mount Rear	SPST	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Standard Panel Mount, Rear

Technical documentation and resources

No documents available
