25_BNC-50-2-14/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

25_BNC-50-2-14/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	25_BNC-50-2-14/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Material	Frequency - Max [Max]	Housing Color	Connector Style	Mating Cycles	Shield Termination	Contact Termination	Mounting Feature	Cable Group	Center Contact Plating	Number of Ports	Body Material	Impedance	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Dielectric Material	Voltage Rating
Huber+Suhner, Inc. 25_BNC-50-3-17/133_NE	Beryllium Copper	4 GHz	Silver	BNC	500	Crimp	Crimp	Flange	223 RG-142	Gold	1	Brass	50 Ohms	Bayonet Lock	-65 ░C	165 °C	Female Socket Jack	Tri-Metal	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)
Huber+Suhner, Inc. 25_BNC-50-2-14/133_NE	Beryllium Copper Brass	4 GHz	Silver	BNC	500	Crimp	Crimp	Flange	188 316 RG-174	Gold	1	Brass	50 Ohms	Bayonet Lock	-65 ░C	165 °C	Female Socket Jack	White Bronze	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500 V
Huber+Suhner, Inc. 25_BNC-50-2-20/133_NE	Beryllium Copper	4 GHz	Silver	BNC	500	Solder	Solder	Flange	RG-405	Gold	1	Brass	50 Ohms	Bayonet Lock	-65 ░C	165 °C	Female Socket Jack	Tri-Metal	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

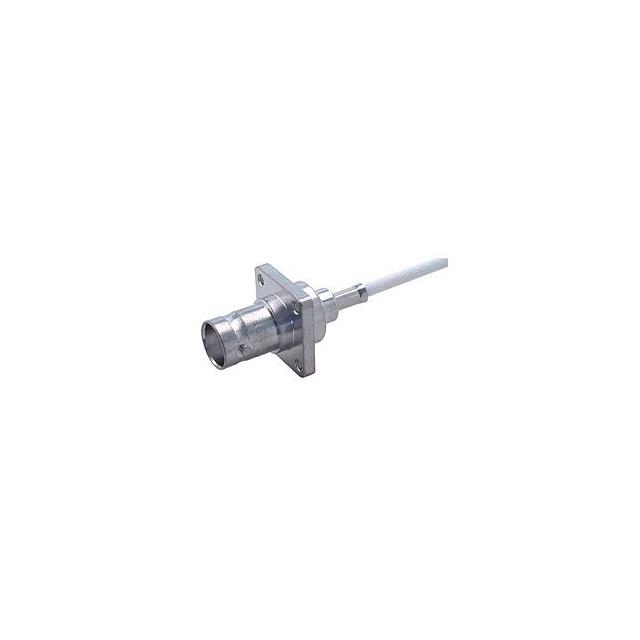

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
