CCLB-1-3046-9920-I

Active

Visual Communications Company - VCC

SEALED LED INDICATOR MID ULTRA R

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

SEALED LED INDICATOR MID ULTRA R

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage	Lens Color	Termination Style	Ingress Protection	Lens Style	Lamp Color	Viewing Angle	Millicandela Rating	Wavelength - Peak	Panel Cutout Shape	Ratings
Visual Communications Company - VCC CCLB-1-3046-9910-I	LED	1.9 V	Red	Wire Leads - 6.000" (152.40mm)	IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round
Visual Communications Company - VCC CCLB-1-3046-9907-I	LED	1.9 V	Red	Wire Leads - 6.000" (152.40mm)	IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round
Visual Communications Company - VCC CCLB-1-3046-9920-I	LED	120 V			IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round	AC
Visual Communications Company - VCC CCLB-1-3046-9908-I	LED	12 V			IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round	DC
Visual Communications Company - VCC CCLB-1-3046-9923-I	LED	28 V			IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round	DC
Visual Communications Company - VCC CCLB-1-3046-0000-I	LED	1.9 V	Red	Wire Leads - 6.000" (152.40mm)	IP67	Round with Domed Top	Red	30 °	900 mcd	626 nm	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

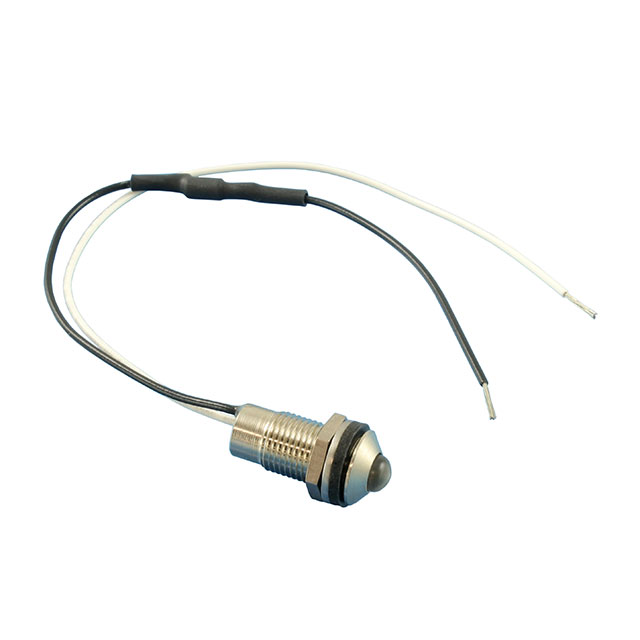

LED Panel Indicator Red 30° 120V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
