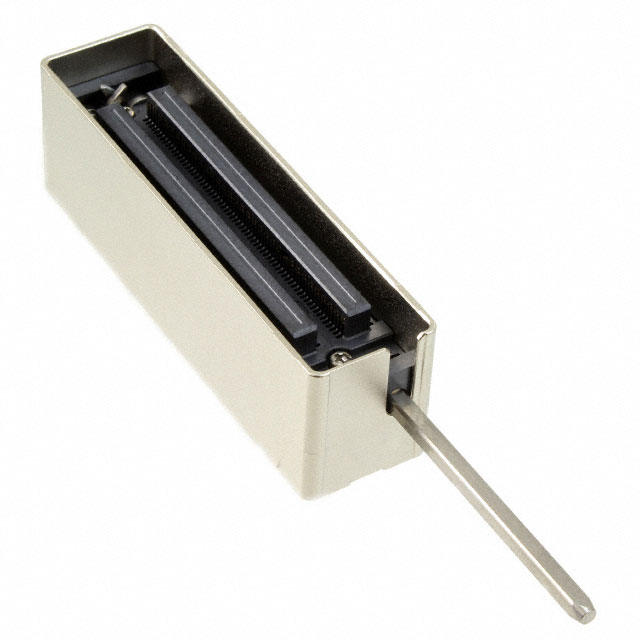

QLC260R

Active

ITT Cannon, LLC

CONN RCPT 260POS PCB

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT 260POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	QLC260R

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	1.02 Ám
Contact Finish Thickness	40 Áin
Current Rating (Amps)	0.5 A
Features	Actuating Camshaft, Zero Insertion Force (ZIF), Shielding Cup
Mounting Type	Through Hole
Number of Positions	260
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Termination	Solder

Part	Number of Positions	Number of Positions Loaded	Termination	Contact Finish	Pitch [x]	Pitch [x]	Current Rating (Amps)	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Connector Usage
ITT Cannon, LLC QLC260R1-M01	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	1.02 Ám	40 Áin	Through Hole	85 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC QLC260R	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	1.02 Ám	40 Áin	Through Hole	85 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC QLC260R-PF	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	1.02 Ám	40 Áin	Through Hole	85 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC QLC260R PARKING	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	1.02 Ám	40 Áin	Through Hole	85 °C	-50 °C	Receptacle Female Sockets
ITT Cannon, LLC QLC260P	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	1.02 Ám	40 Áin		85 °C	-55 °C	Male Pins Plug	Daughtercard
ITT Cannon, LLC QLC260R-M01	260	All	Solder	Gold	0.8 mm	0.031 in	0.5 A	Actuating Camshaft Shielding Cup Zero Insertion Force (ZIF)	1.02 Ám	40 Áin	Through Hole	85 °C	-50 °C	Receptacle Female Sockets
