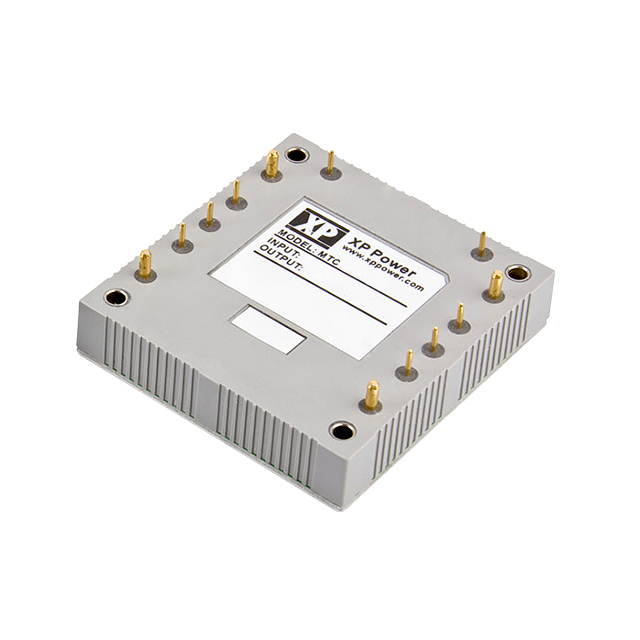

MTC7528D12

Active

XP POWER

DC DC CONVERTER +/-12V 75W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-12V 75W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Type	Efficiency	Current - Output (Max)	Current - Output (Max)	Control Features	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
XP POWER MTC7528D12	Through Hole	Isolated Module	83 %	3.13 A	3.13 A	Active High Enable	OCP OTP OVP Remote On/Off	ITE (Commercial)	100 °C	-40 °C	1.5 kV	-12 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	2	12-DIP Module 10 Leads	75 W	10 VDC	12 V
XP POWER MTC7528D15	Through Hole	Isolated Module				Active High Enable	OCP OTP OVP Remote On/Off	ITE (Commercial)	100 °C	-40 °C	1.5 kV	-15 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	2	12-DIP Module 10 Leads	75 W	10 VDC	15 V	2.5 A	2.5 A
XP POWER MTC7528S3V3	Through Hole	Isolated Module				Active High Enable	OCP OTP OVP Remote On/Off	ITE (Commercial)	100 °C	-40 °C	1.5 kV		2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	12-DIP Module	75 W	10 VDC	3.3 V			20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 422.38

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 3.13A, 3.13A 10V - 40V Input
