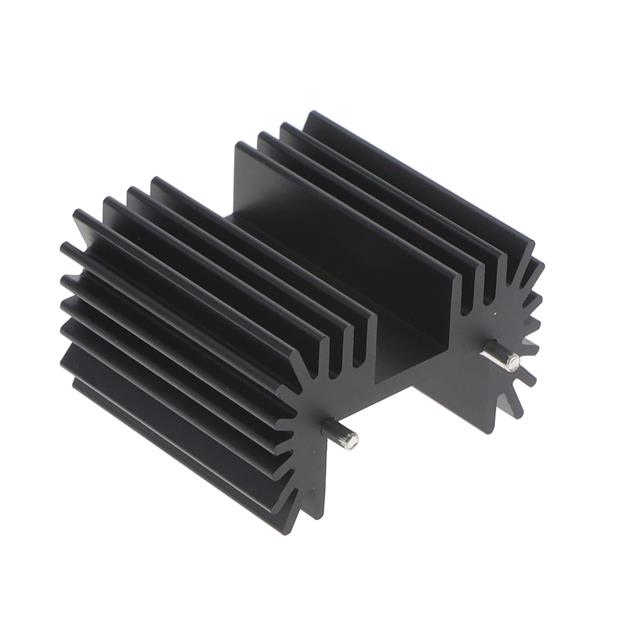

677-15ABPE
ActiveWakefield-Vette
HEATSINK MULTIWATT 1.5" BLK
Deep-Dive with AI
Search across all available documentation for this part.
677-15ABPE
ActiveWakefield-Vette
HEATSINK MULTIWATT 1.5" BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 677-15ABPE |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 1 in |
| Fin Height | 25.4 mm |
| Length | 1.5 " |
| Length | 38.1 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | Multiwatt, TO-220, TO-247, TO-218 |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Forced Air Flow | 2.8 °C/W, 200 LFM |
| Type | Board Level, Vertical |
| Width [x] | 41.91 mm |
| Width [x] | 1.65 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.44 | |
| 10 | $ 3.35 | |||
| 25 | $ 3.25 | |||
| 50 | $ 3.07 | |||
| 200 | $ 2.89 | |||
| 400 | $ 2.71 | |||
| 600 | $ 2.62 | |||
| 1000 | $ 2.35 | |||
Description
General part information
677-15 Series
Heat Sink TO-218, TO-220, TO-247, Multiwatt Aluminum 6.0W @ 46°C Board Level, Vertical
